Terminal block RSA 4 A orange

Manufacturer Code: A131171
0,55 € without VAT 0,66 € with VAT
Terminal block RSA 4 A orange
Rated cross-section [mm²] 4
Rated current [A] 32
Short-time withstand current [A] 480
Insulation voltage Ui [V] 1000
Impulse voltage U (Imp) [V] 8000
Tightening torque [Nm] 0,5
Tools Screwdriver PH 0 / 0,5 x 3
Assembly method (on DIN rail) TH 15, TH 35, G 32
Pollution degree 2
IP code 20
Operating temperature [°C] -40 - +105
Number of clamping points per level 2
Number of levels 1
End cover plate required YES

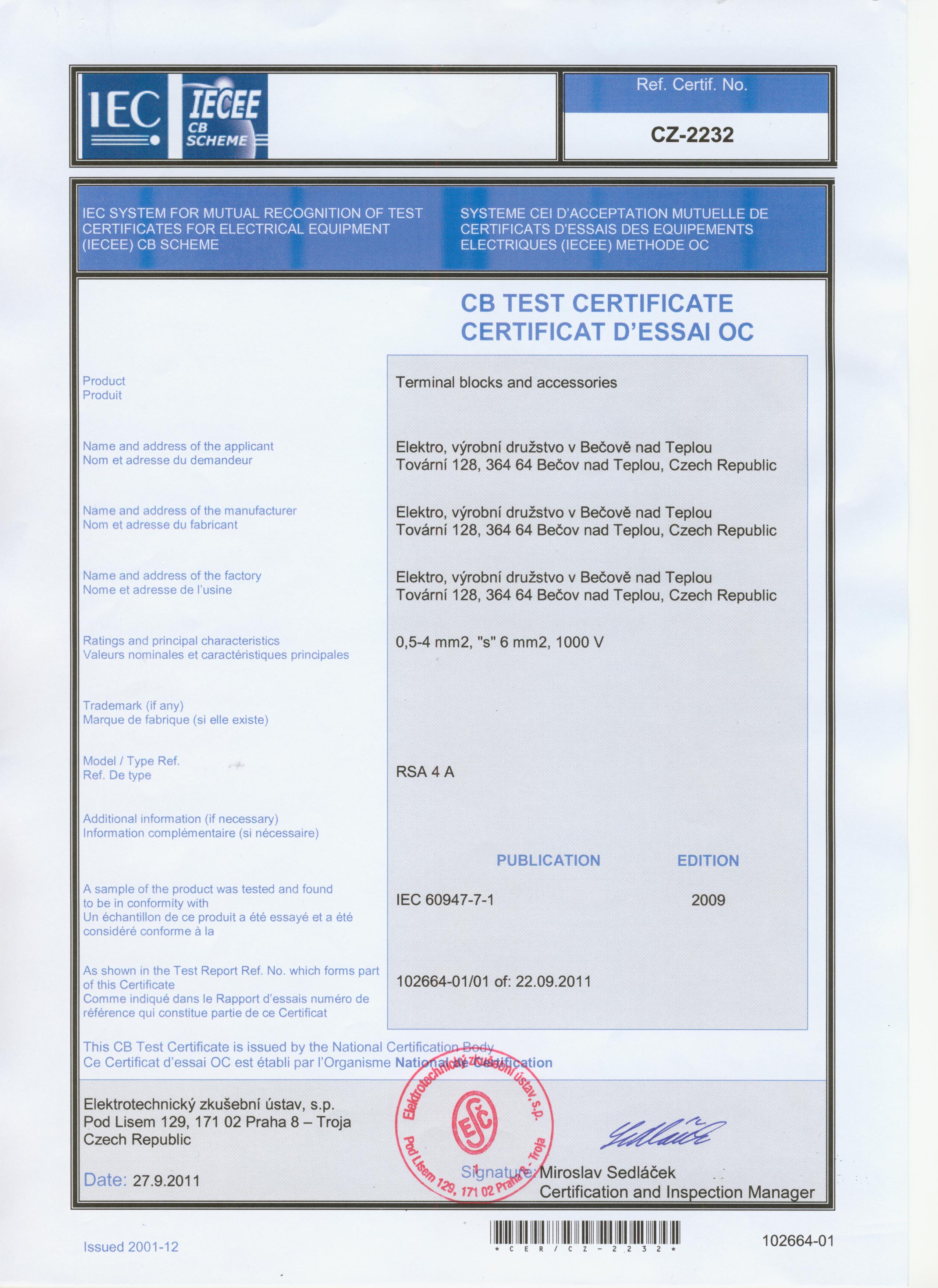

Testing ČSN EN 60947-7-1
Dimensions [mm] (width / height / length) 6,6 / 39 / 41,5
Weight [g] 8
Packing [pcs] 100
Clamping screw M 3 x 7

Conductor cross section

Solid conductor [mm²] 0,5 - 6
Stranded conductor [mm²] 0,5 - 4
Finely stranded conductor [mm²] 0,5 - 4
2 x Solid conductor, stranded, finely stranded [mm²] 0,5 - 2,5
3 x Solid conductor, stranded, finely stranded [mm²] 0,5 - 1
Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²] 4
Stripping length [mm] 9,5

Performance

Insulating body Polyamide PA 6, flammability V0 halogen free
Electric conductive part Brass (galvanic surfaced)
Fixing part Thermally treated steel (galvanic surfaced)
