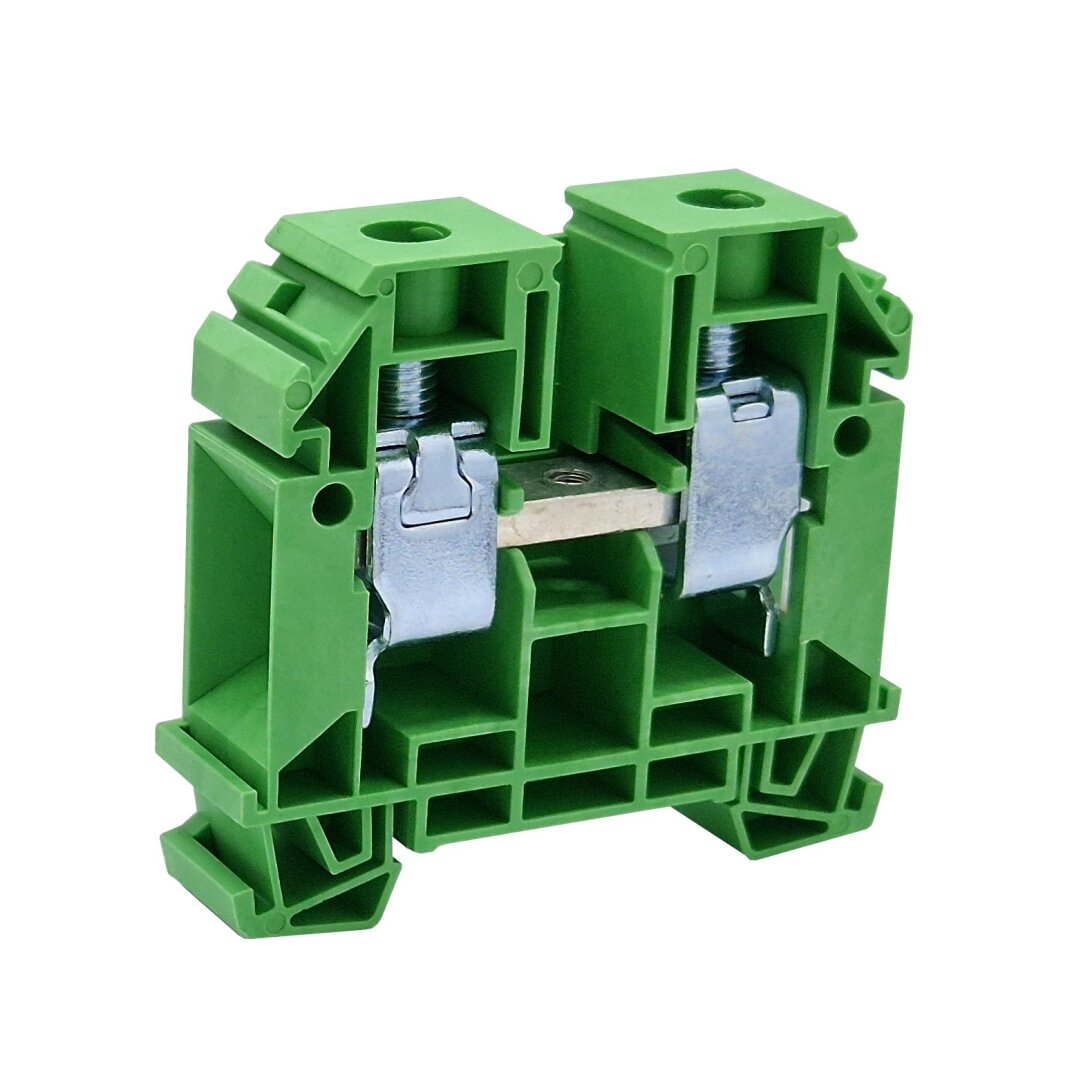

Terminal block RSA 35 A green
Manufacturer Code: A871250
2,01 € without VAT 2,44 € with VAT
Terminal block RSA 35 A green
Rated cross-section [mm²] | 35 |
Rated current [A] | 125 |
Short-time withstand current [A] | 4200 |
Insulation voltage Ui [V] | 1000 |
Impulse voltage U (Imp) [V] | 8000 |
Tightening torque [Nm] | 3 |
Tools | Inbus number 3 |
Assembly method (on DIN rail) | TH 35 |
Pollution degree | 2 |
IP code | 10 * |
Operating temperature [°C] | -40 - +105 |
Number of clamping points per level | 2 |
Number of levels | 1 |
End cover plate required | YES |
Testing | ČSN EN 60947-7-1 |

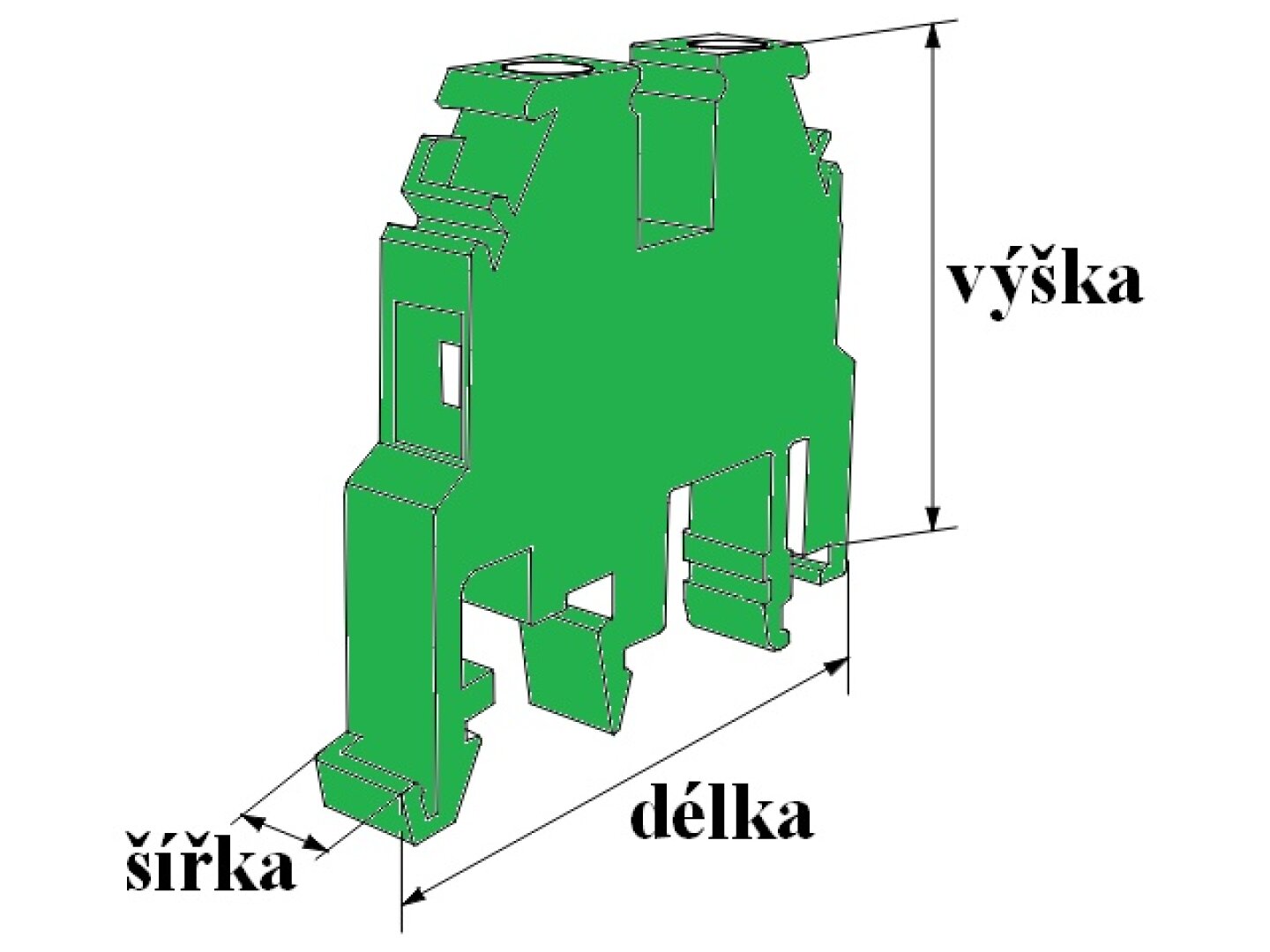

Dimensions [mm] (width / height / length) | 16,5 / 58,9 / 65 |
Weight [g] | 56 |
Packing [pcs] | 20 |
Clamping screw | M 6 x 15,2 |
Note | * To achieve IP 20 level of protection in RSA 35 A, it is necessary to use additional accessories – side cover in case the terminal has no conductor connected or when a 10 mm2 cross-section conductor or smaller is connected – otherwise the terminal has IP |
Solid conductor [mm²] | 2,5 - 16 |
Stranded conductor [mm²] | 4 - 50 |
Finely stranded conductor [mm²] | 4 - 35 |
2 x Solid conductor, stranded, finely stranded [mm²] | 2,5 - 16 |
3 x Solid conductor, stranded, finely stranded [mm²] | 2,5 - 10 |
Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²] | 35 |
Stripping length [mm] | 15 |
Insulating body | Polyamide PA 6, flammability V0 halogen free |
Electric conductive part | Copper (galvanic surface) |
Fixing part | Thermally treated steel (galvanic surfaced) |
