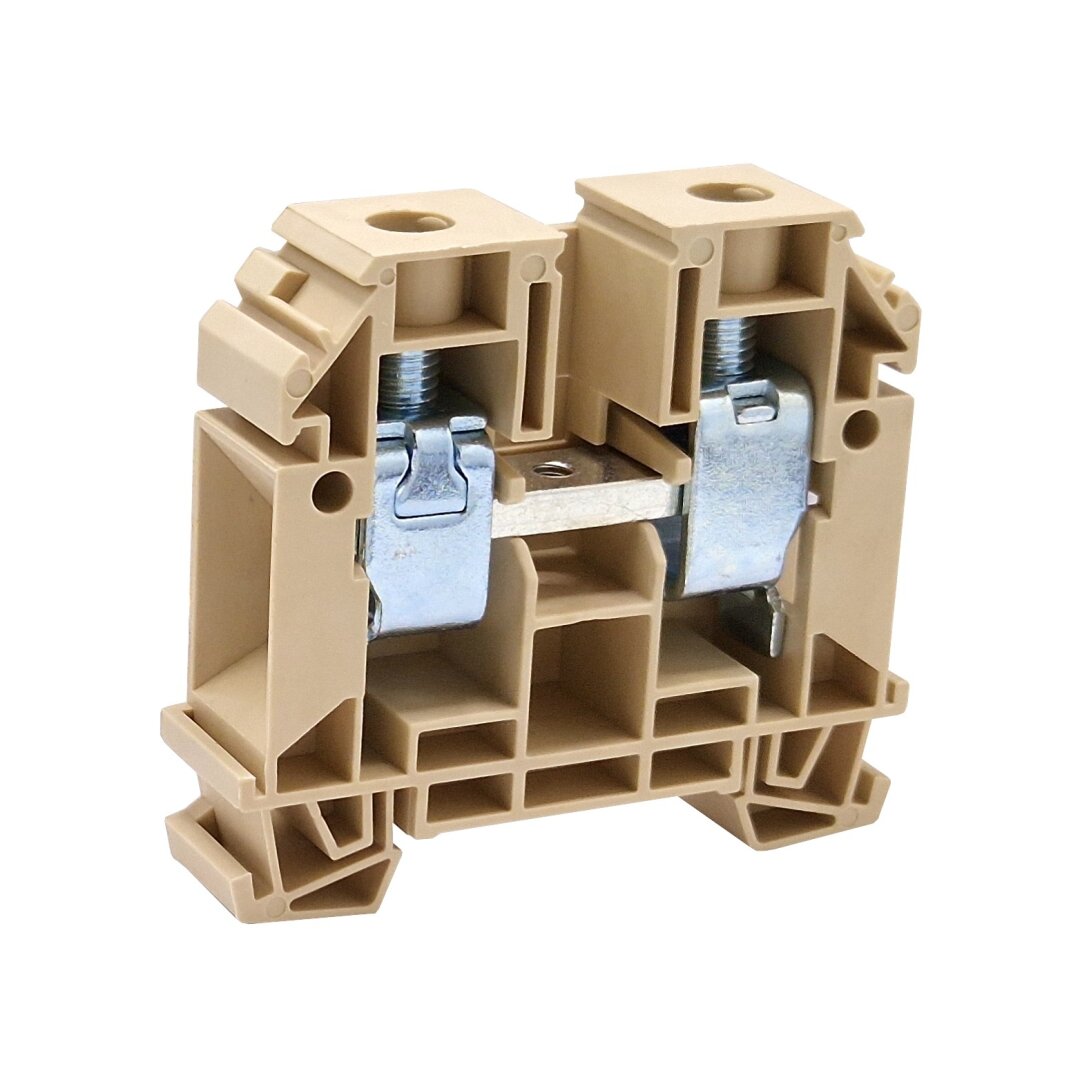

Terminal block RSA 35 A beige

Manufacturer Code: A171141

2,14 € without VAT 2,58 € with VAT

Rated cross-section [mm²]	35
Connection capacity [mm²]	2,5 ÷ 50
Rated current [A]	125
Rated current ATEX [A]	110
Short-time withstand current [A]	4200
Insulation voltage Ui [V]	1000 V AC / 1500 V DC
Voltage ATEX [V]	320
Impulse voltage U (Imp) [V]	8000
Tightening torque [Nm]	3
Tools	Inbus number 3
Assembly method (on DIN rail)	TH 35
Pollution degree	2
IP code	10 *
Operating temperature [°C]	-40 - +105
Number of clamping points per level	2
Number of levels	1
End cover plate required	YES
Testing	IEC 60947-7-1
ATEX approval	Ex II 2G Ex eb IIC Gb /Ex I M2 Ex eb I Mb

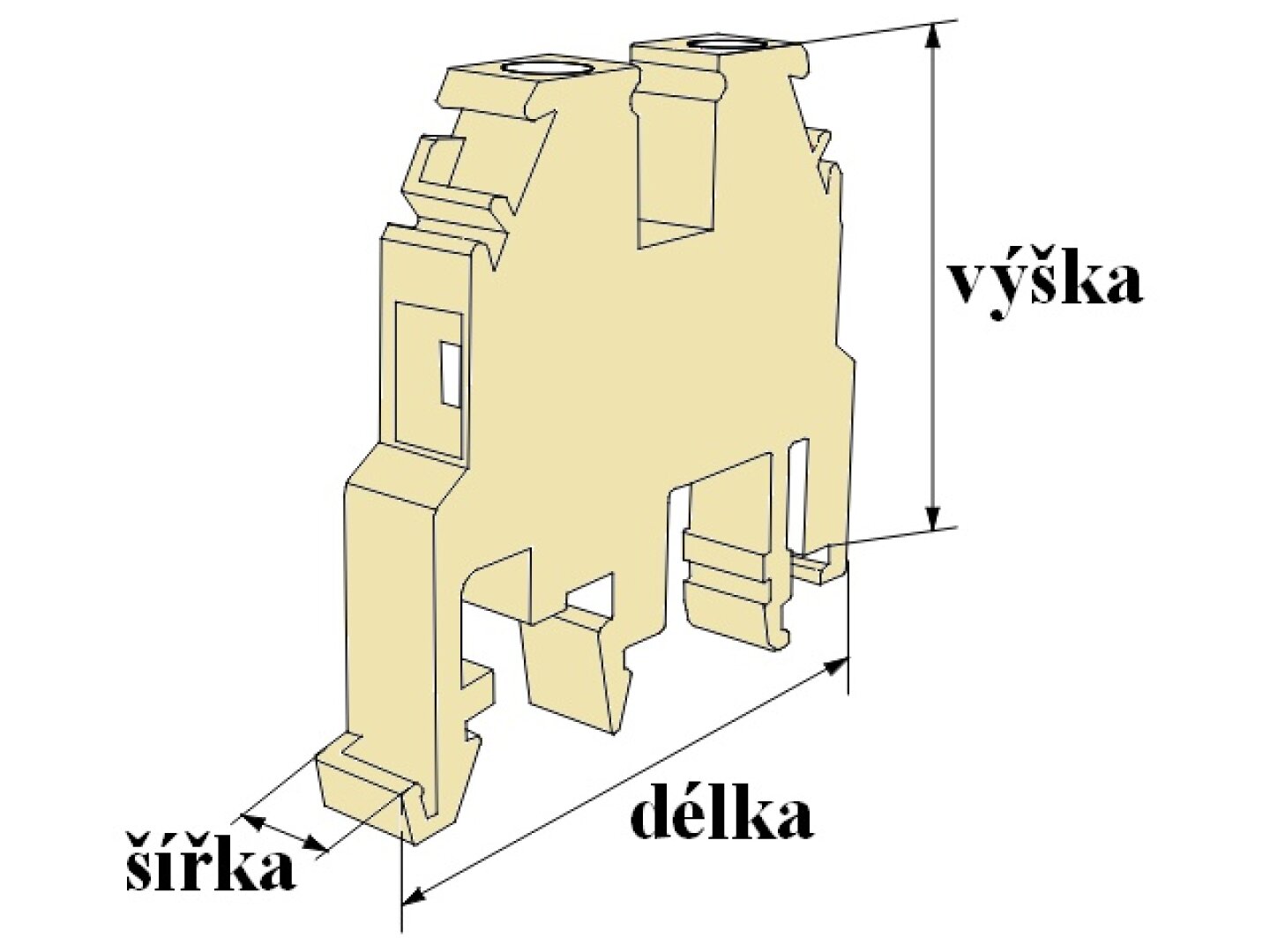

Dimensions [mm] (width / height / length)	16,5 / 58,9 / 65
Weight [g]	56
Packing [pcs]	20
Clamping screw	M 6 x 15,2
Note	*In order to achieve IP 20 protection, it is necessary to use additional accessories - a side cover in the event that no wire is connected in the terminal or a wire with a cross-section of 10 mm² and smaller is connected - otherwise the terminal has IP 10

Solid conductor [mm²]	2,5 - 16
Stranded conductor [mm²]	4 - 50
Finely stranded conductor [mm²]	4 - 35
2 x Solid conductor, stranded, finely stranded [mm²]	2,5 - 16
3 x Solid conductor, stranded, finely stranded [mm²]	2,5 - 10
Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²]	35
Stripping length [mm]	15

Insulating body	Polyamide PA 6, flammability V0 halogen free
Electric conductive part	Copper (galvanic surface)
Fixing part	Thermally treated steel (galvanic surfaced)
