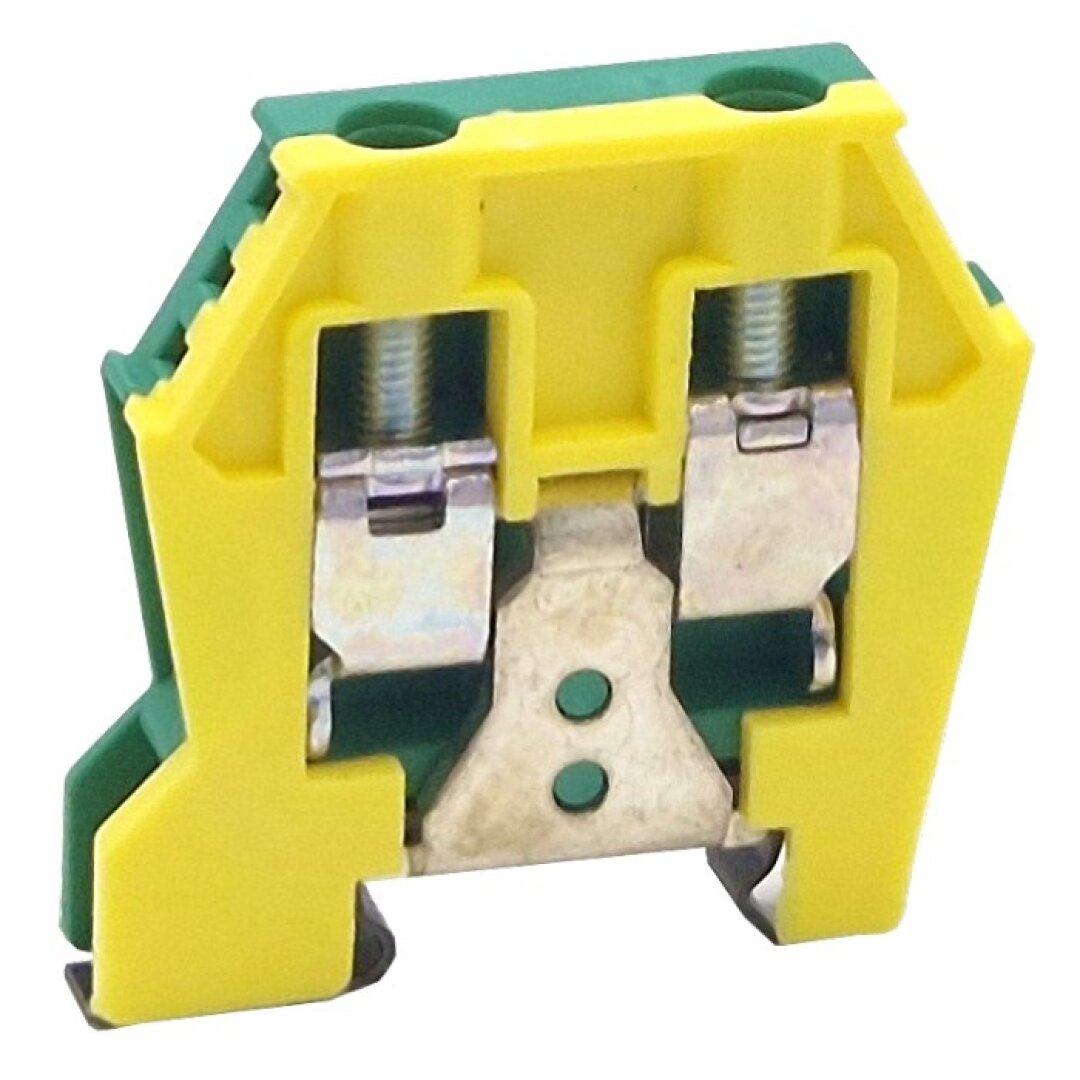

Terminal block EURO PE Mini 4
Manufacturer Code: A560110
2,78 € without VAT 3,36 € with VAT
Terminal block EURO PE Mini 4
| Rated cross section [mm²] | 4 |
| Rozsah připojitelnosti [mm²] | 0,5 ÷ 6 |
| Short-time withstand current [A] | 480 |
| Electrical strength [kV] | 6 |
| Tightening torque [Nm] | 0,6 |
| Tools | Screwdriver 0,5 x 3 |
| Assembly method (on DIN rail) | TH 15 |
| IP code | 20 |
| Operating temperature [°C] | -60 ÷ +130 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | NO |
| Testing | EN 60947-7-2 |
| Dimensions [mm] (width / height / length) | 6 / 28 / 32 |
| Weight [g] | 9 |
| Packing [pcs] | 20 |
| Colour design | yellow-green |
| Solid conductor [mm²] | 0,5 ÷ 6 |
| Flexible stranded conductor [mm²] | 0,5 ÷ 4 |
| Stripping length [mm] | 10 |
| Recommended length of the ferrule [mm] | 12 |
| Insulating body | Polyamid (PA) |
| Electric conductive part | Copper (Cu) |
| Fixing part | Heat treated steel (galvanized) |
