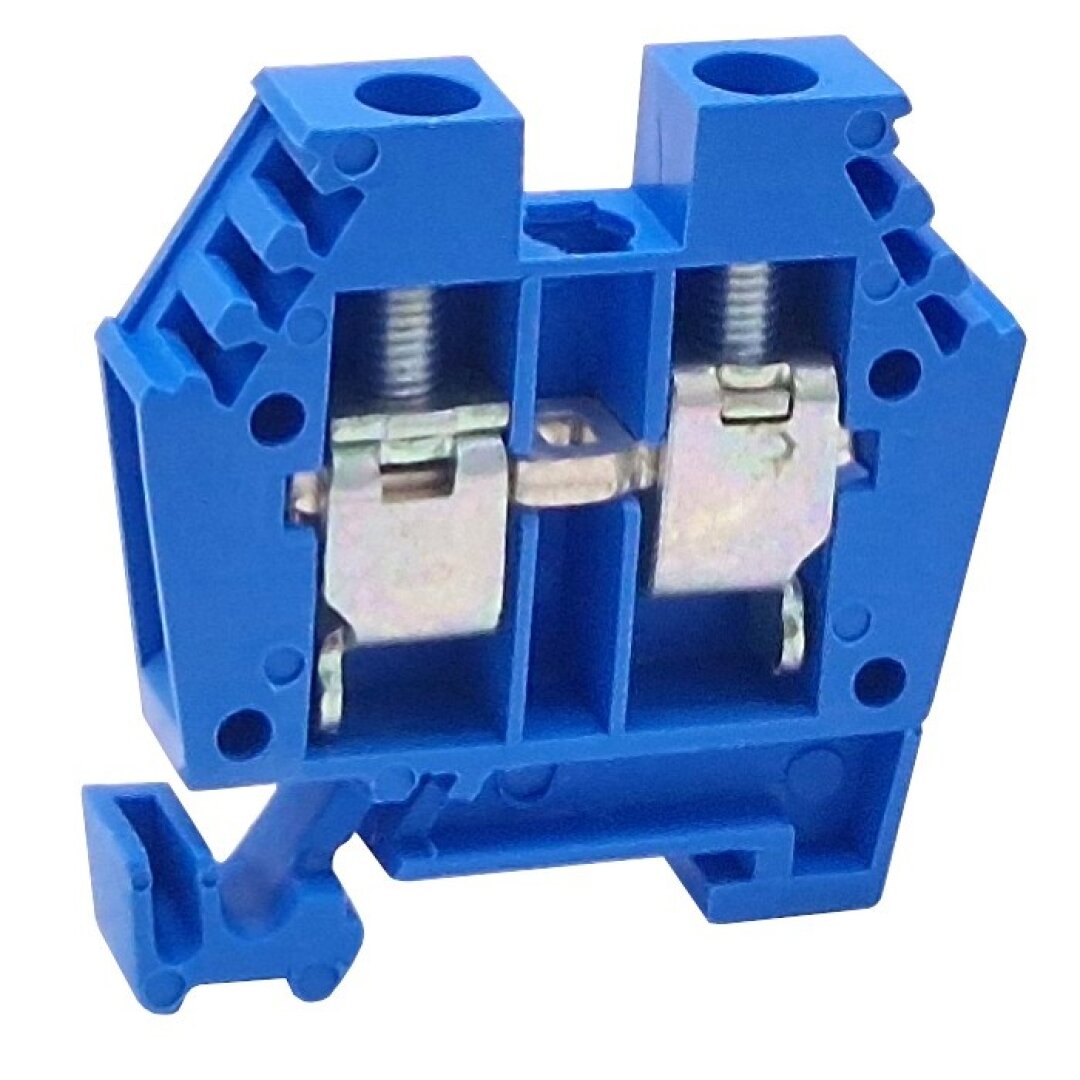

Terminal block EURO Mini 4 dark blue
Manufacturer Code: A160130
0,80 € without VAT 0,97 € with VAT
Terminal block EURO Mini 4 dark blue
| Rated cross section [mm²] | 4 |
| Rated current [A] | 32 |
| Short-time withstand current [A] | 480 |
| Rated voltage Ui [V] | 400 |
| Electrical strength [kV] | 8 |
| Tightening torque [Nm] | 0,6 |
| Tools | Screwdriver 0,5 x 3 |
| Assembly method (on DIN rail) | TH 15 |
| IP code | 20 |
| Operating temperature [°C] | -60 ÷ +130 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 6 / 28 / 32 |
| Weight [g] | 6 |
| Packing [pcs] | 100 |
| Solid conductor [mm²] | 0,5 - 6 |
| Flexible stranded conductor [mm²] | 0,5 - 4 |
| Stripping length [mm] | 10 |
| Recommended length of the ferrule [mm] | 12 |
| Insulating body | Polyamid (PA) |
| Electric conductive part | Copper (Cu) |
| Fixing part | Thermally treated steel (galvanic surfaced) |
