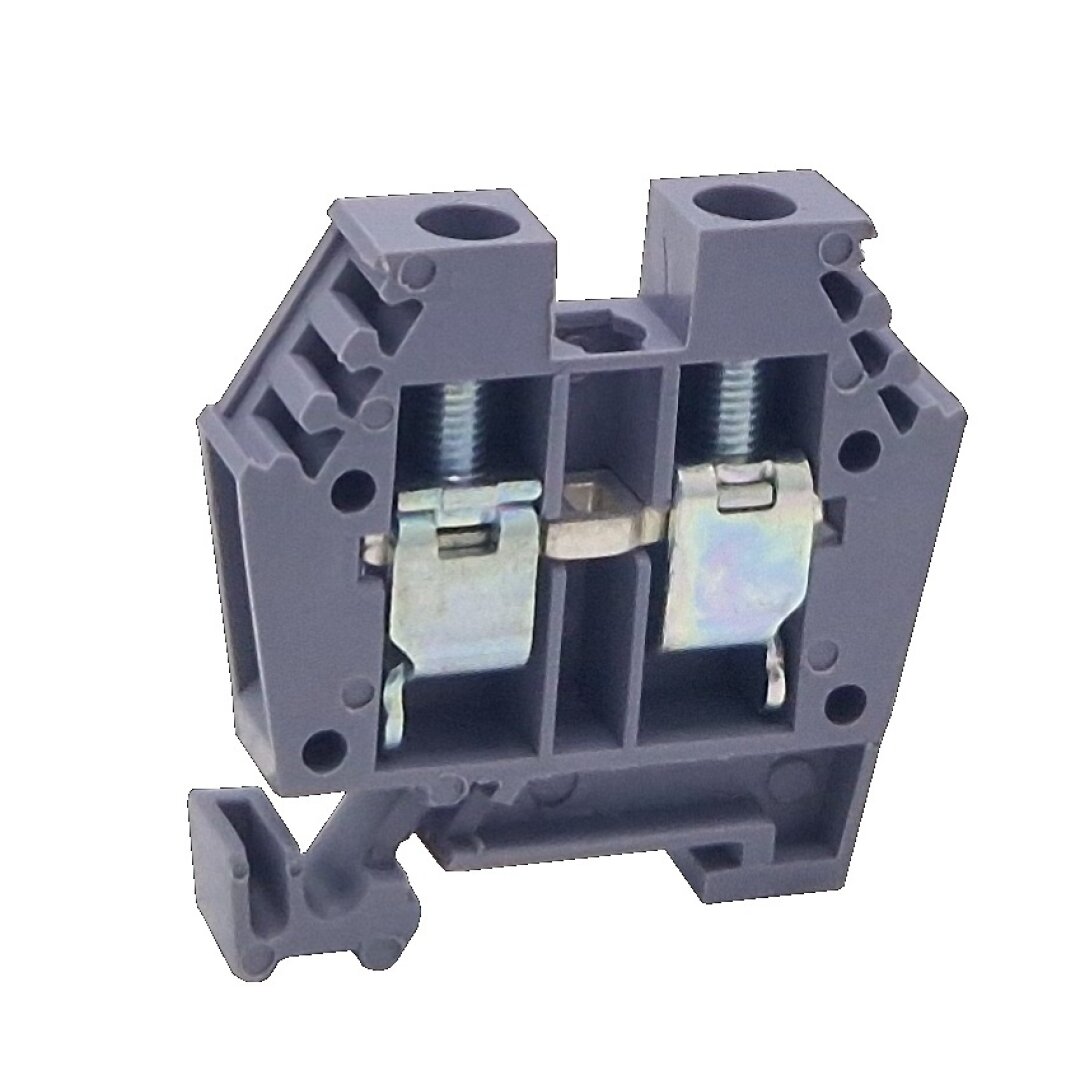

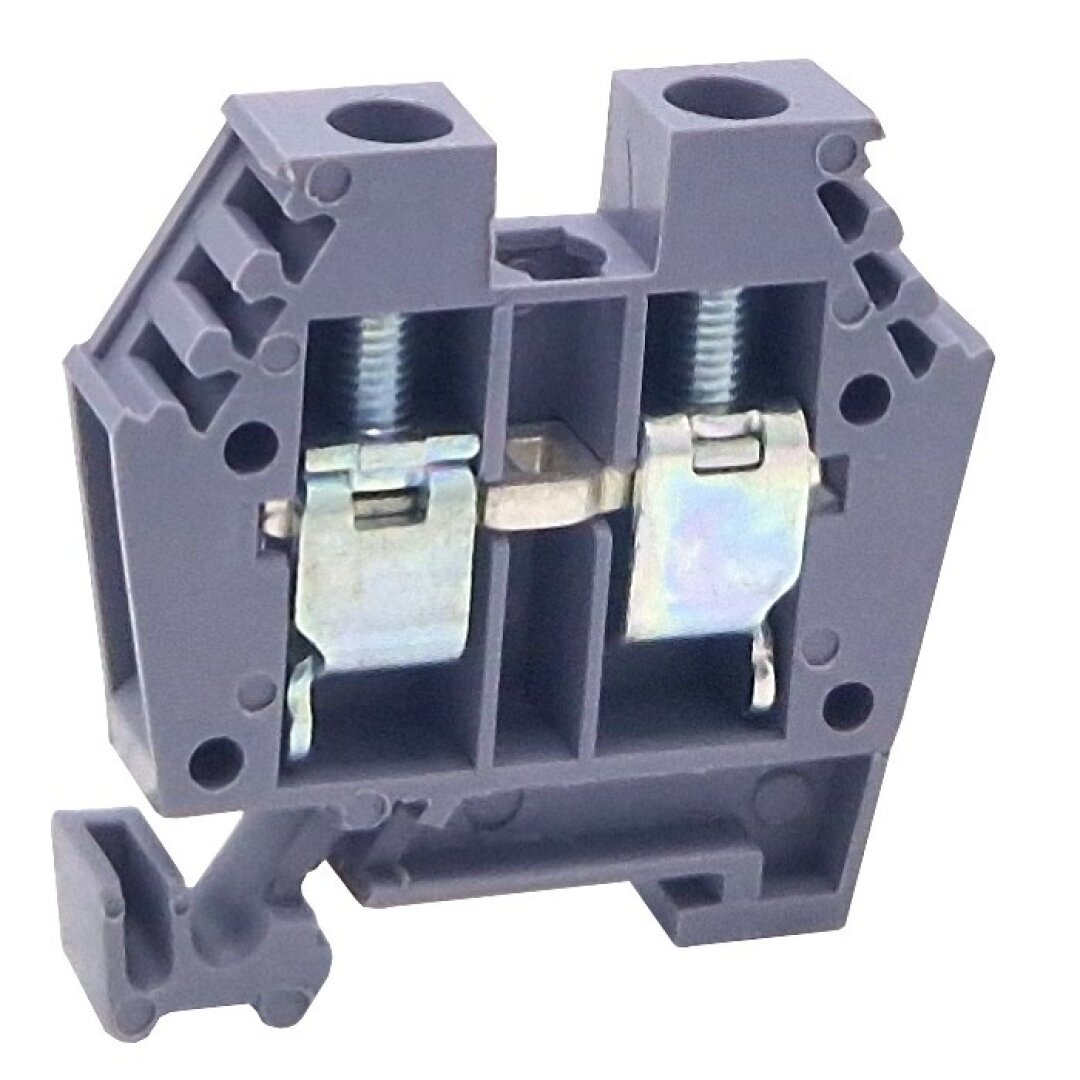

Terminal block EURO Mini 4 grey

Manufacturer Code: A160210
0,76 € without VAT 0,92 € with VAT
Terminal block EURO Mini 4 grey
Rated cross section [mm²] 4
Rated current [A] 32
Short-time withstand current [A] 480
Rated voltage Ui [V] 400
Electrical strength [kV] 8
Tightening torque [Nm] 0,6
Tools Screwdriver 0,5 x 3
Assembly method (on DIN rail) TH 15
IP code 20
Operating temperature [°C] -20 - +55
Number of clamping points per level 2
Number of levels 1
End cover plate required YES
Testing EN 60947-7-1
Dimensions [mm] (width / height / length) 6 / 28 / 32
Weight [g] 6
Packing [pcs] 100

Conductor cross section

Solid conductor [mm²] 0,5 - 6
Flexible stranded conductor [mm²] 0,5 - 4
Stripping length [mm] 10
Recommended length of the ferrule [mm] 12

Performance

Insulating body Polyamid (PA)
Electric conductive part Copper (Cu)
Fixing part Thermally treated steel (galvanic surfaced)
