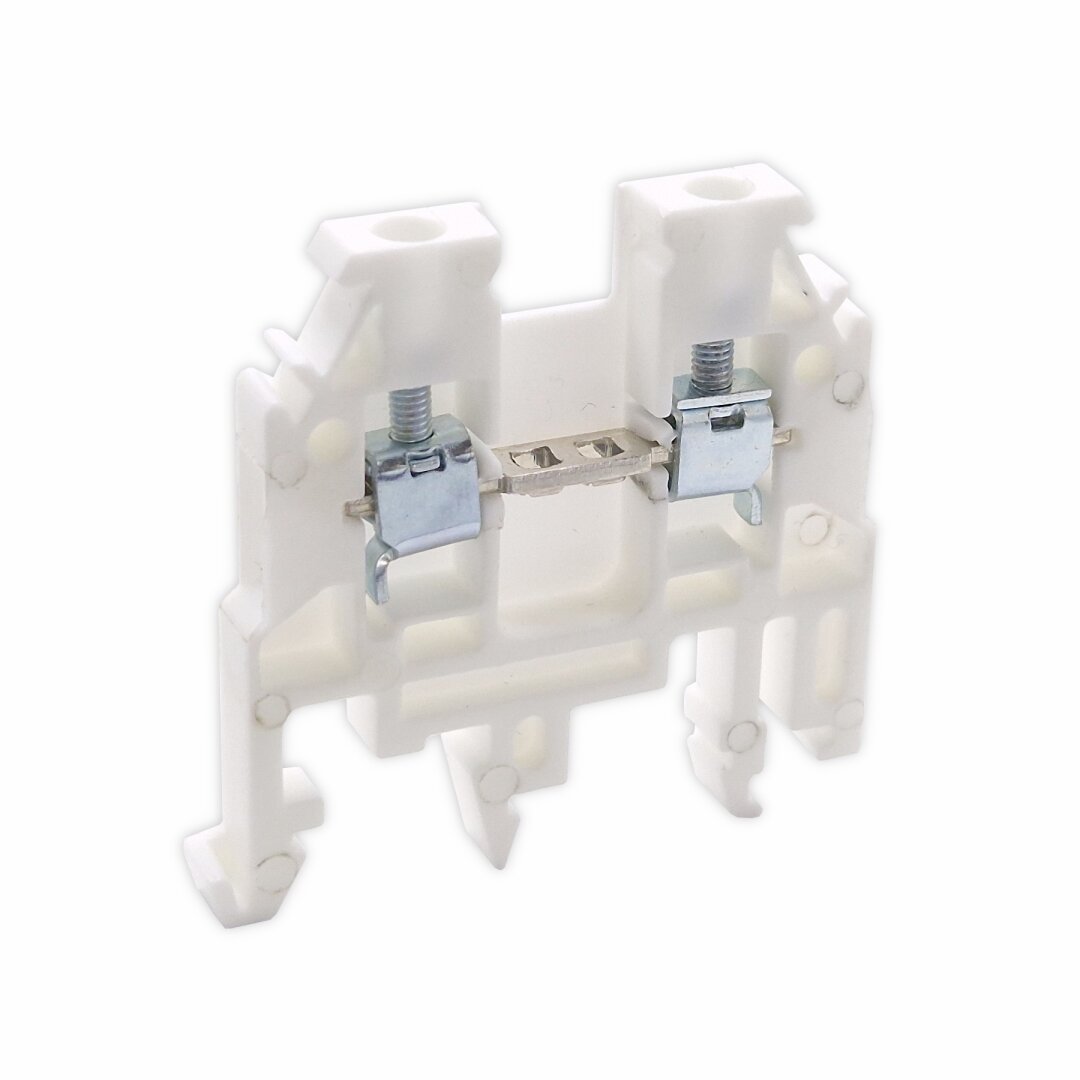

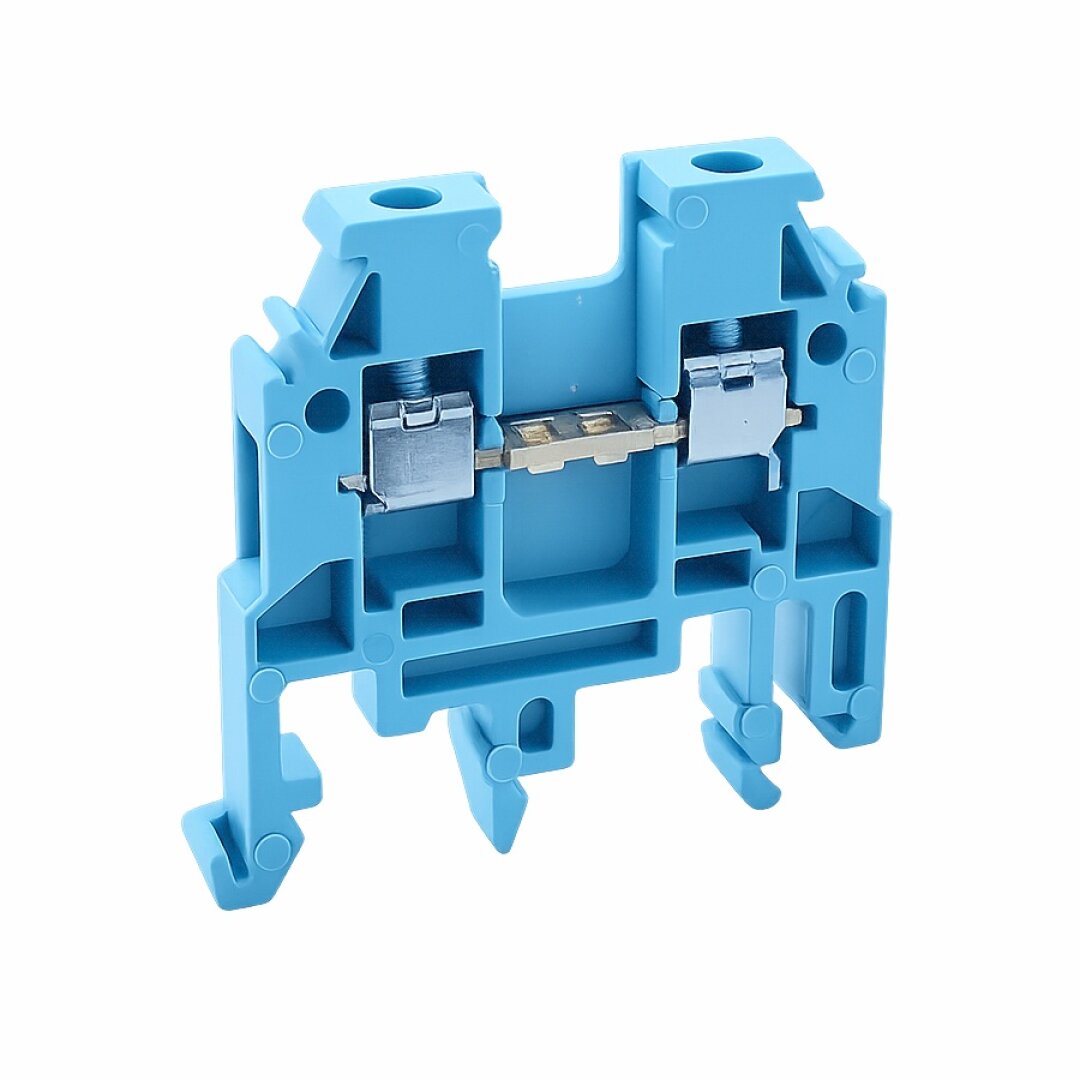

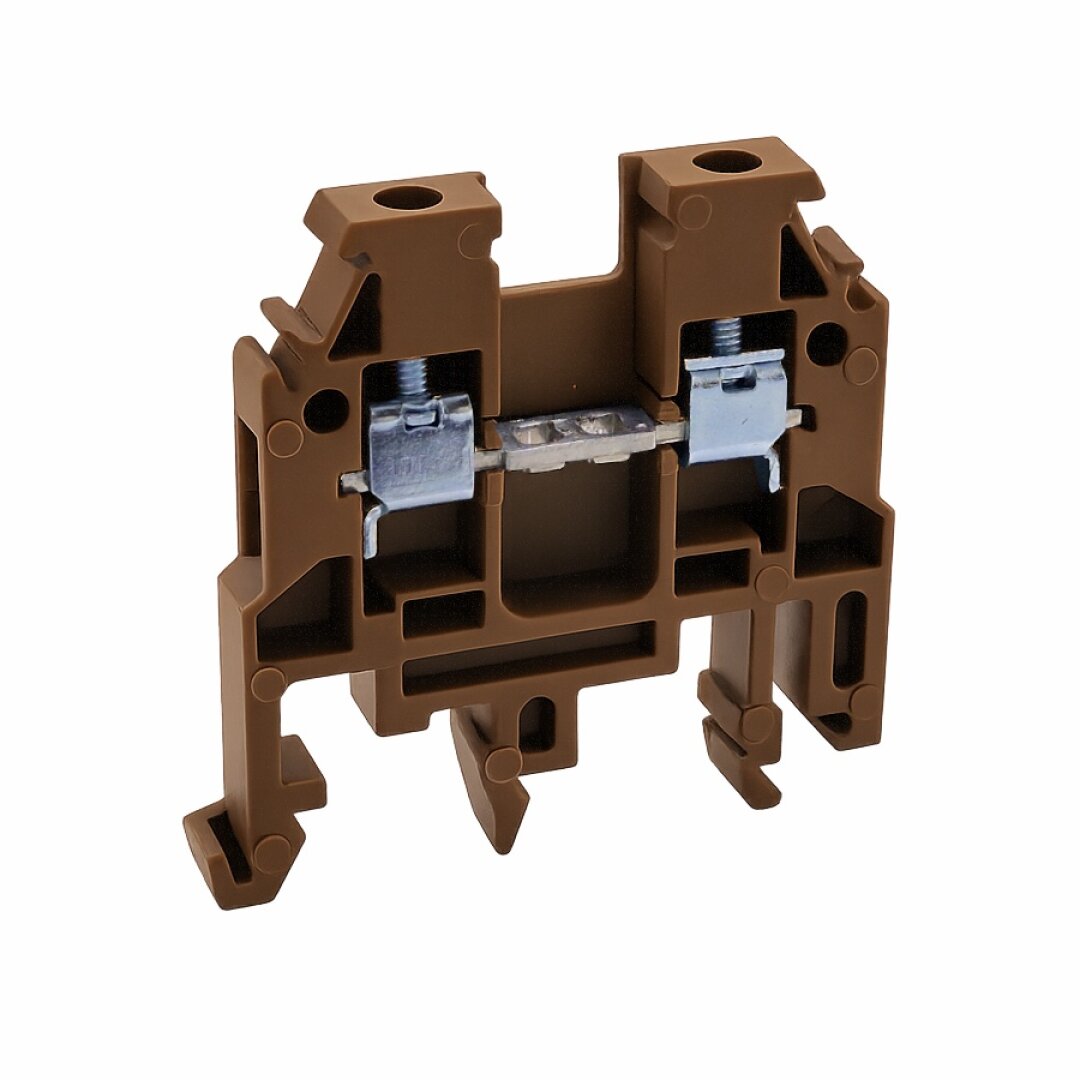

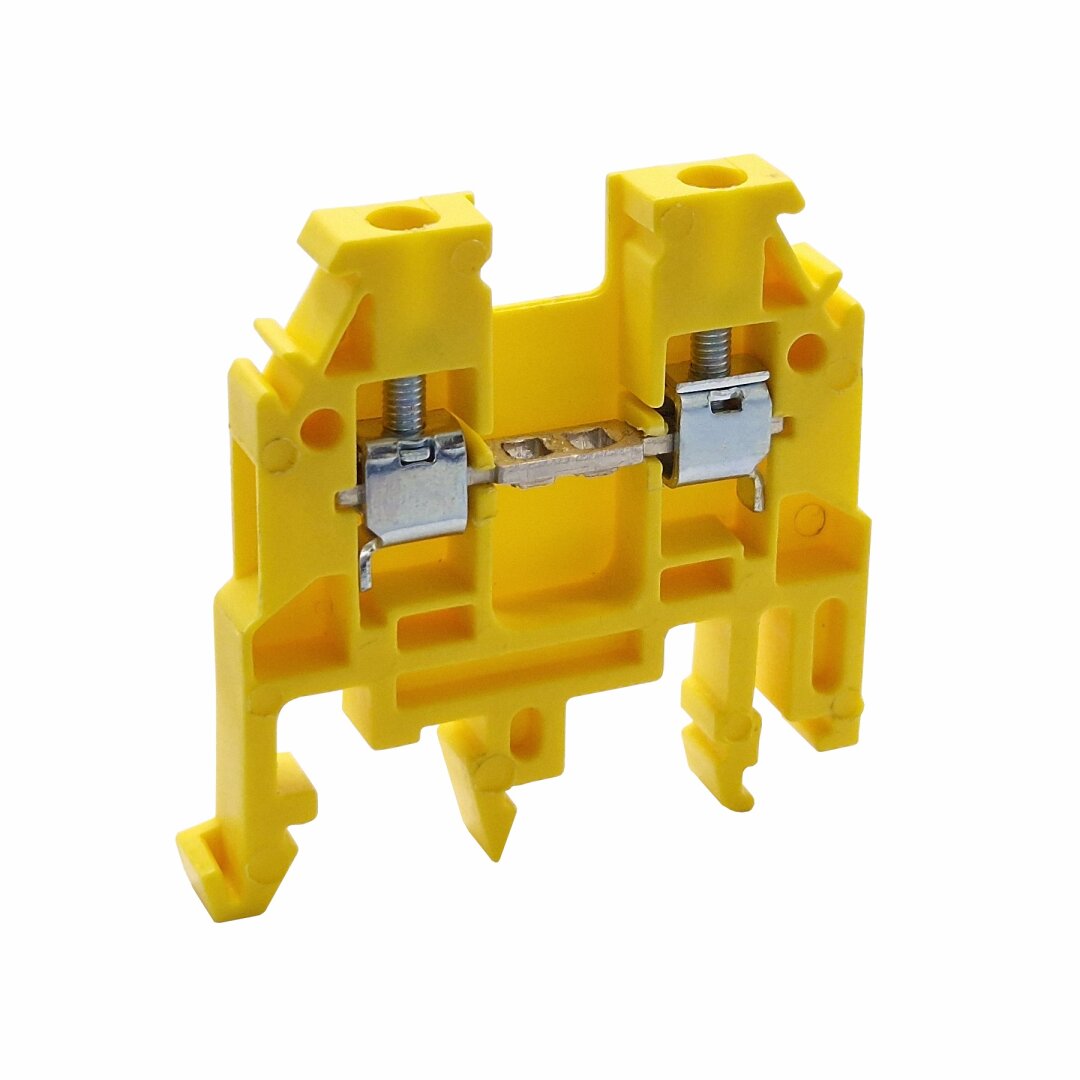

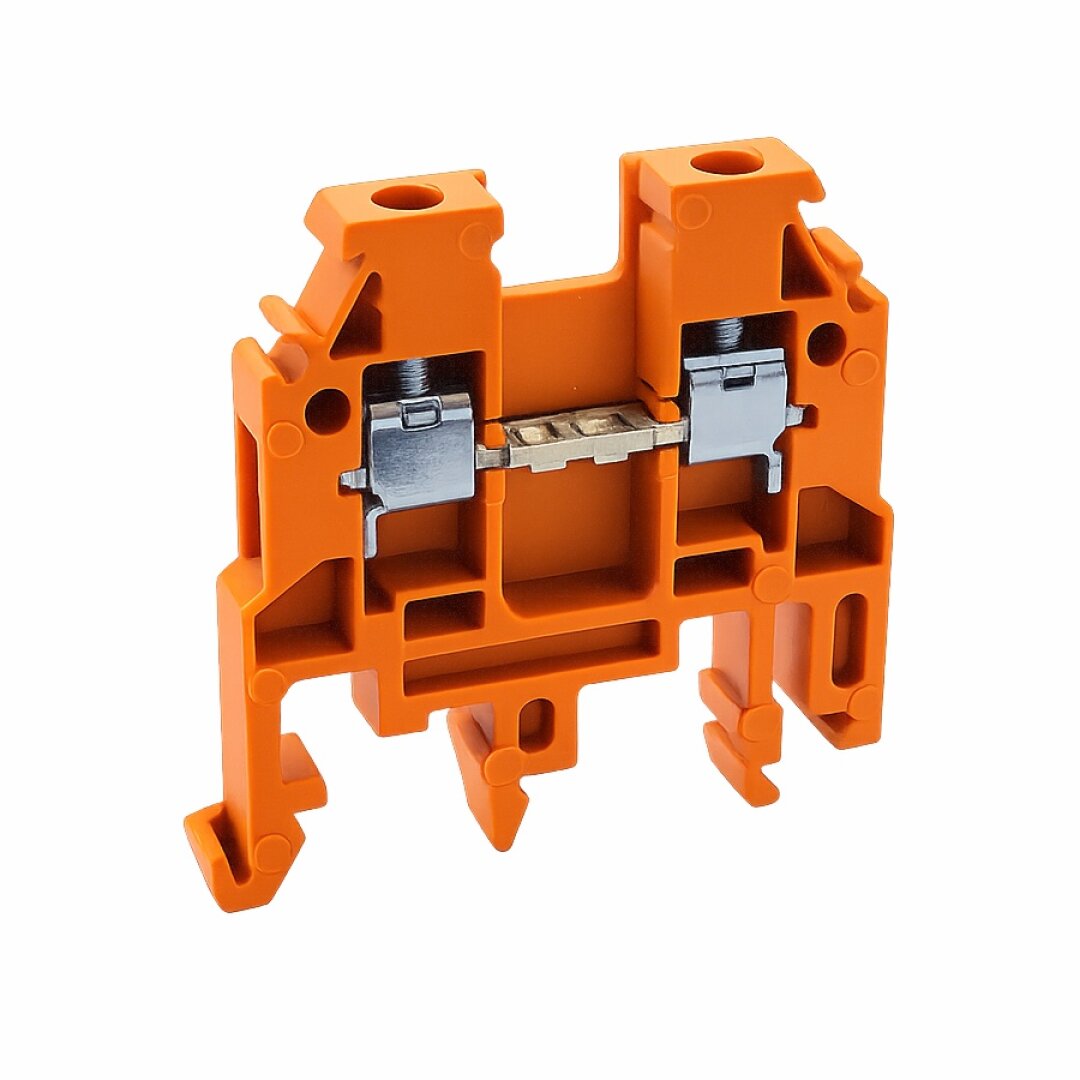

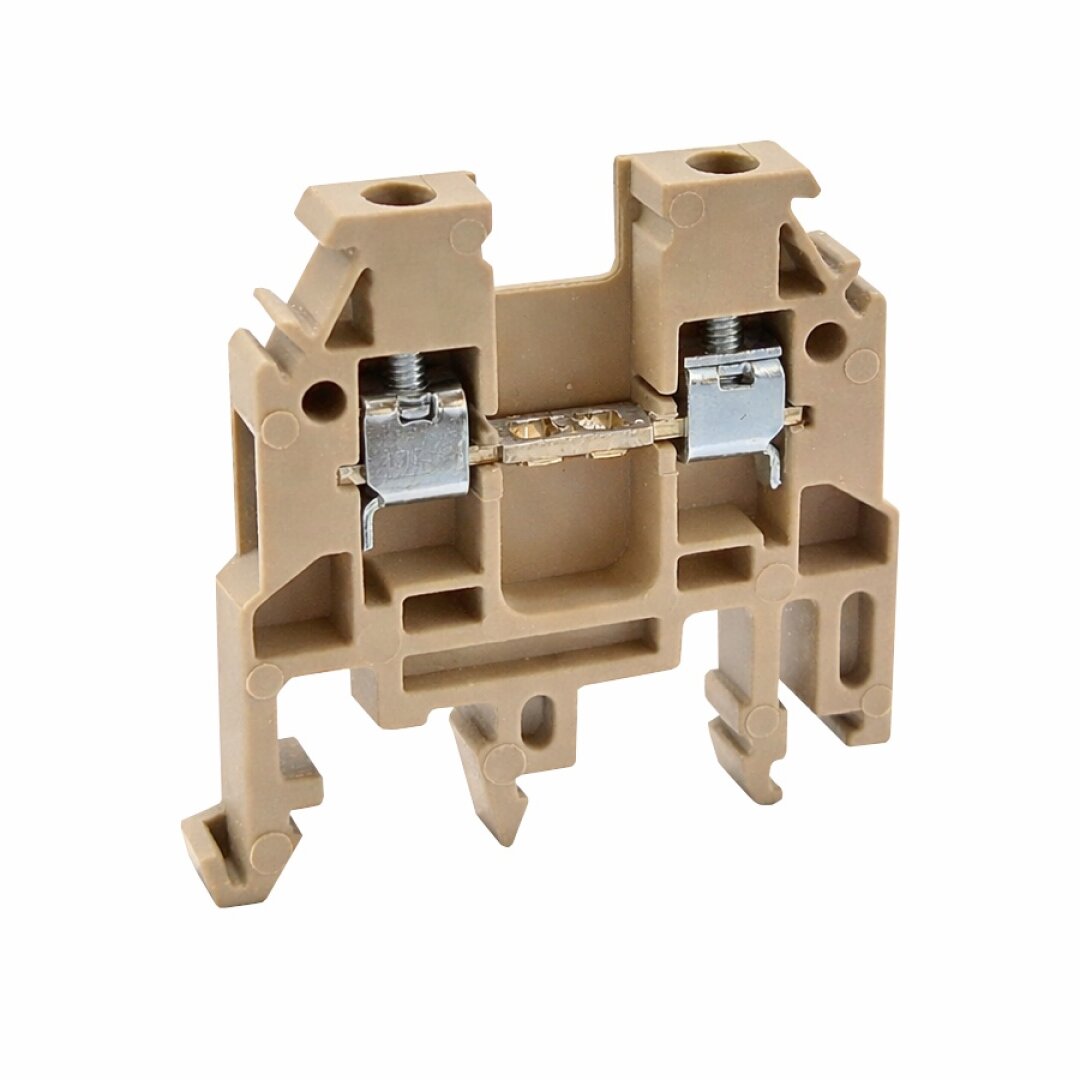

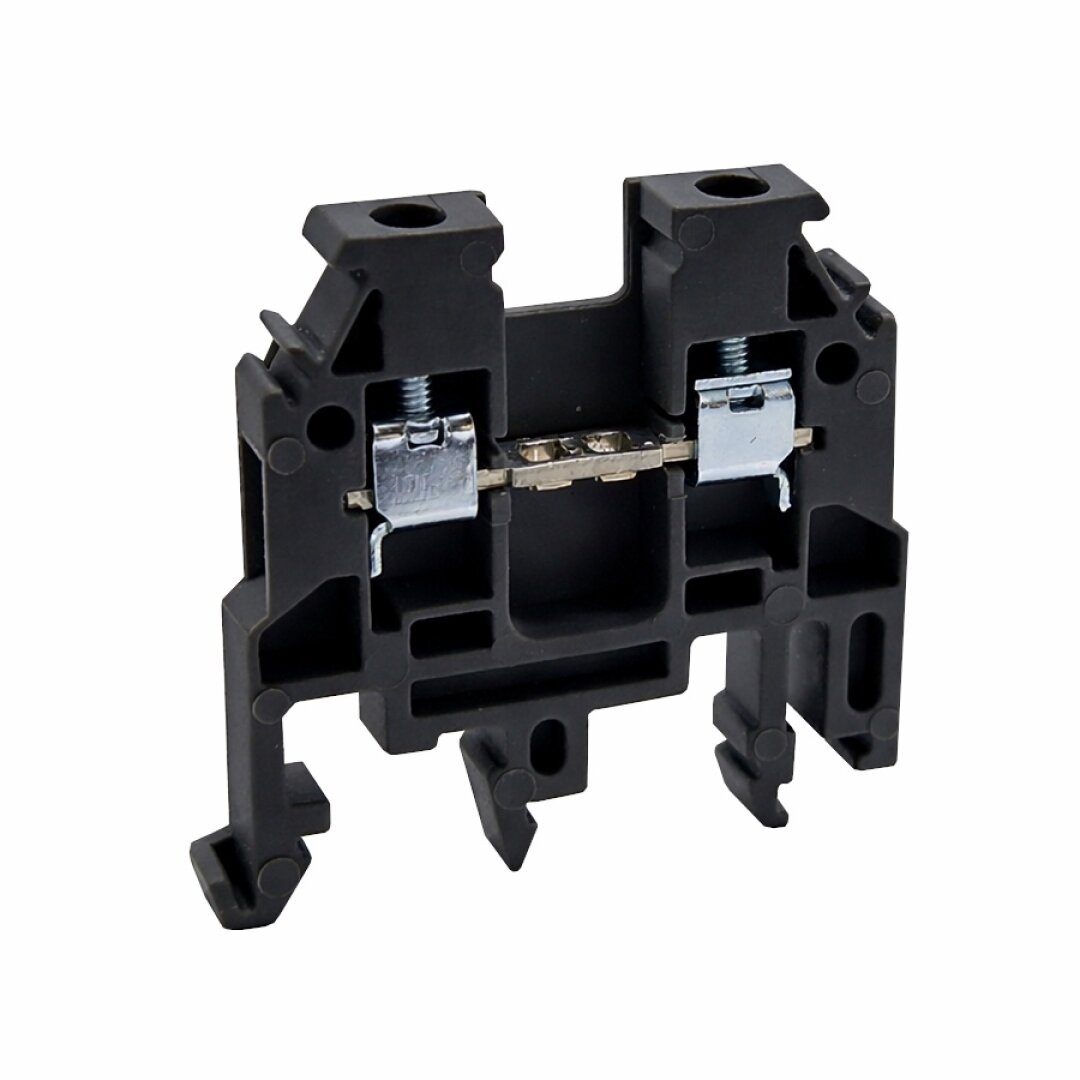

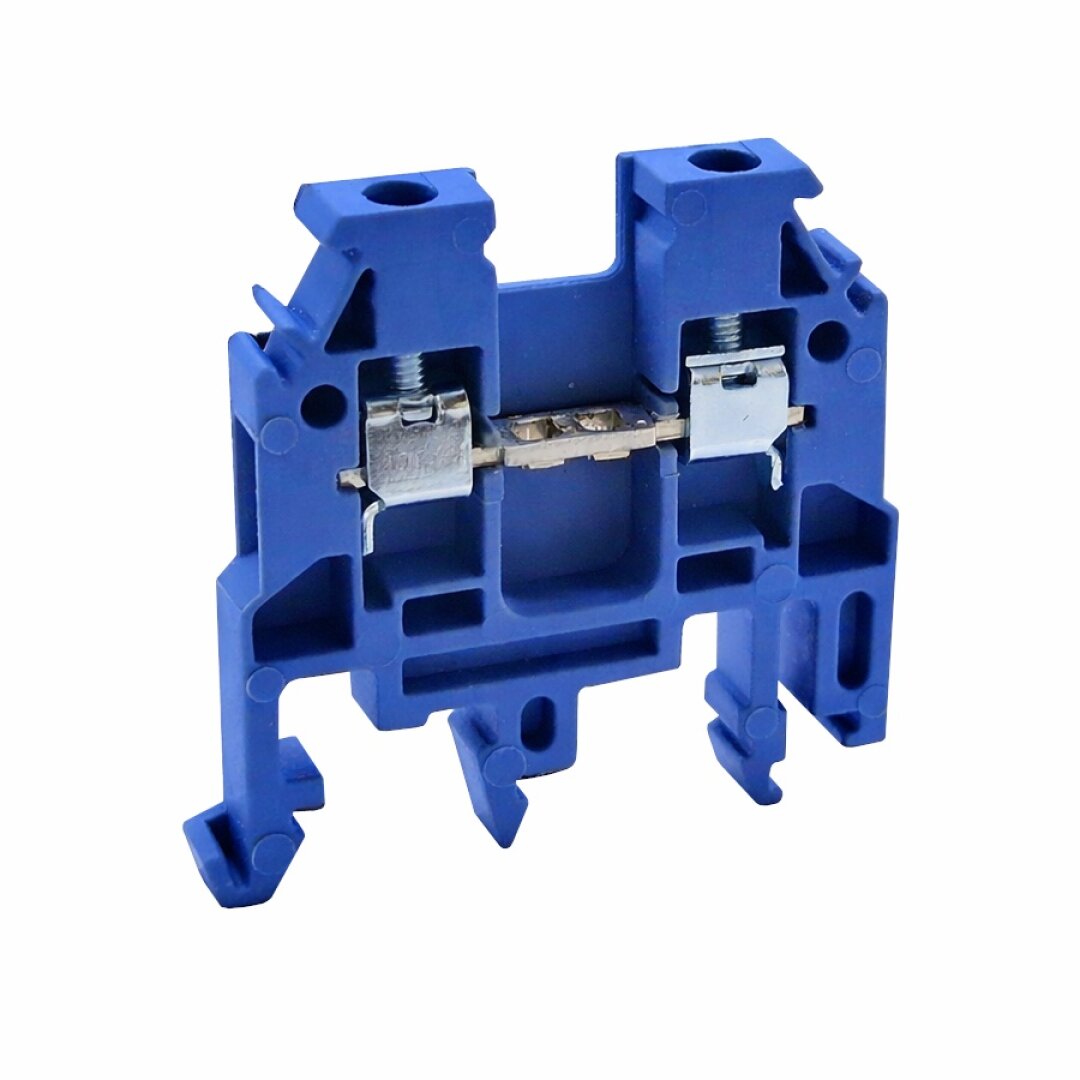

terminal blocks RS 2,5
0,60 € without VAT 0,73 € with VAT
terminal blocks RS 2,5
| Rated cross-section [mm²] | 2,5 |
| Connection capacity [mm²] | 0,5 ÷ 4 |
| Rated current [A] | 24 |
| Rated current ATEX [A] | 20 |
| Short-time withstand current [A] | 300 |
| Insulation voltage Ui [V] | 1000 V AC / 1500 V DC |
| Voltage ATEX [V] | 500 |
| Impulse voltage U (Imp) [V] | 8000 |
| Tightening torque [Nm] | 0,4 |
| Tools | Screwdriver PH 0 / 0,5 x 3 |
| Assembly method (on DIN rail) | TS 15, TS 35, G 32 |
| IP code | 20 |
| Operating temperature [°C] | -40 ÷ +105 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |
| Testing | IEC 60947-7-1 |
| ATEX approval | Ex II 2G Ex eb IIC Gb /Ex I M2 Ex eb I Mb |
| Dimensions [mm] (width / height / length) | 5 / 40,5 / 41,8 |
| Weight [g] | 6,3 |
| Packing [pcs] | 100 |
| Solid conductor [mm²] | 0,5 ÷ 4 |
| Finely stranded conductor [mm²] | 0,5 ÷ 2,5 |
| 2 x Solid conductor, stranded, finely stranded [mm²] | 0,5 ÷ 1 |
