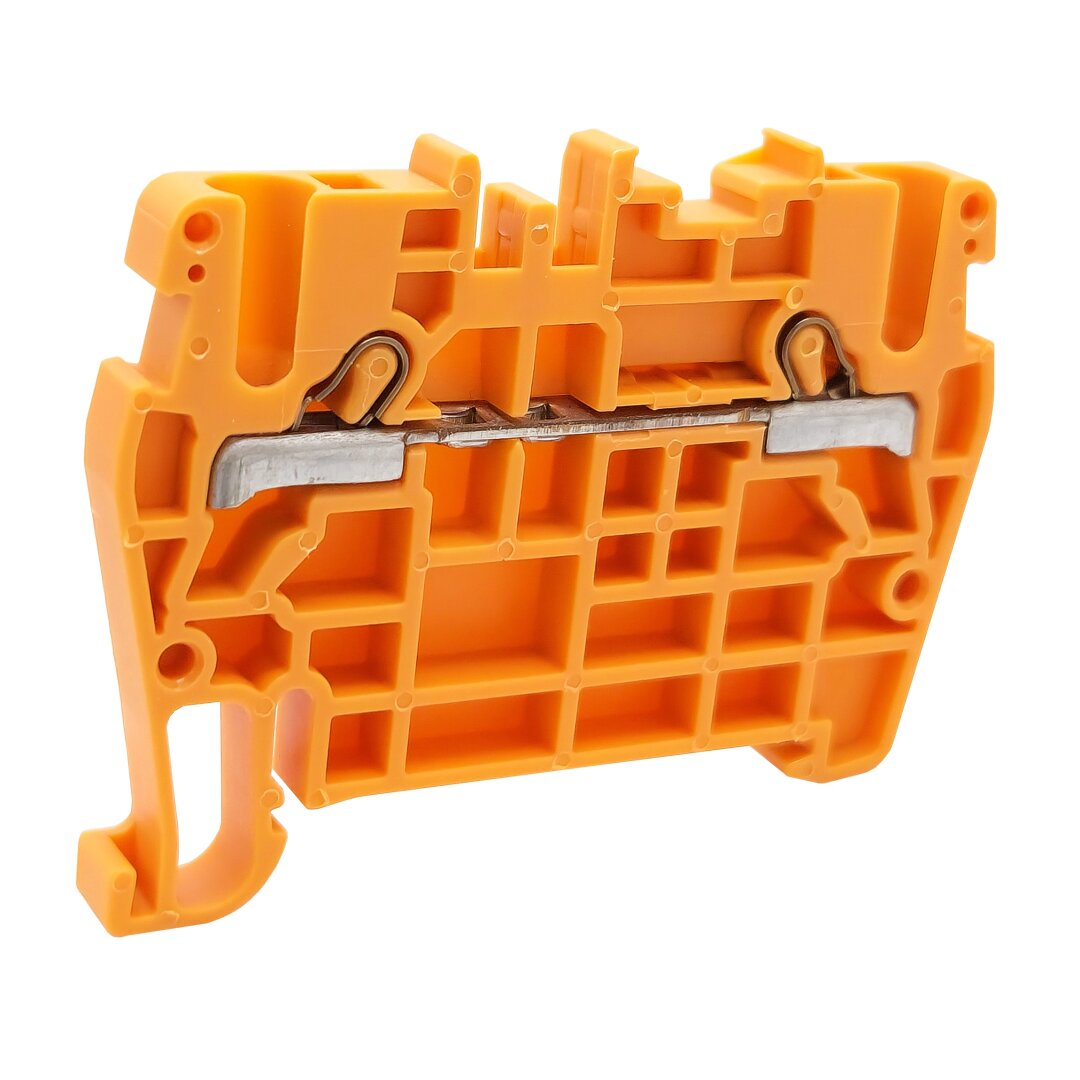

PYK 2,5
0,59 € without VAT 0,71 € with VAT
PYK 2,5
| Rated cross-section [mm²] CE | 2,5 |
| Rated cross-section [AVG] UL | 22 - 12 |
| Rated cross-section [mm²] VDE | 2,5 |
| Rated current [A] CE | 24 |
| Rated current [A] UL | 20 |
| Rated current [A] VDE | 24 |
| Rated current [A] ATEX | 24 |
| Rated voltage Ui [V] CE | 800 |
| Rated voltage Ui [V] UL | 600 |
| Rated voltage Ui [V] VDE | 800 |
| Rated voltage Ui [V] ATEX | 800 |
| Rated impulse withstand voltage Uimp [V] | 8 000 |
| Tool for conductor release | Flat screwdriver 0,4 x 2,5 |
| Assembly method | TH 35 |
| Pollution degree | 3 |
| IP code | 20 |
| Operating temperature [°C] | -55 - +120 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 5 / 43 / 53,4 |
| Weight [g] | 6 |
| Packing [pcs] | 100 |
| Solid conductor [mm²] | 0,34 - 4 |
| Finely stranded conductor [mm²] | 0,34 -2,5 |
| Stripping length [mm] | 9 - 10 |
