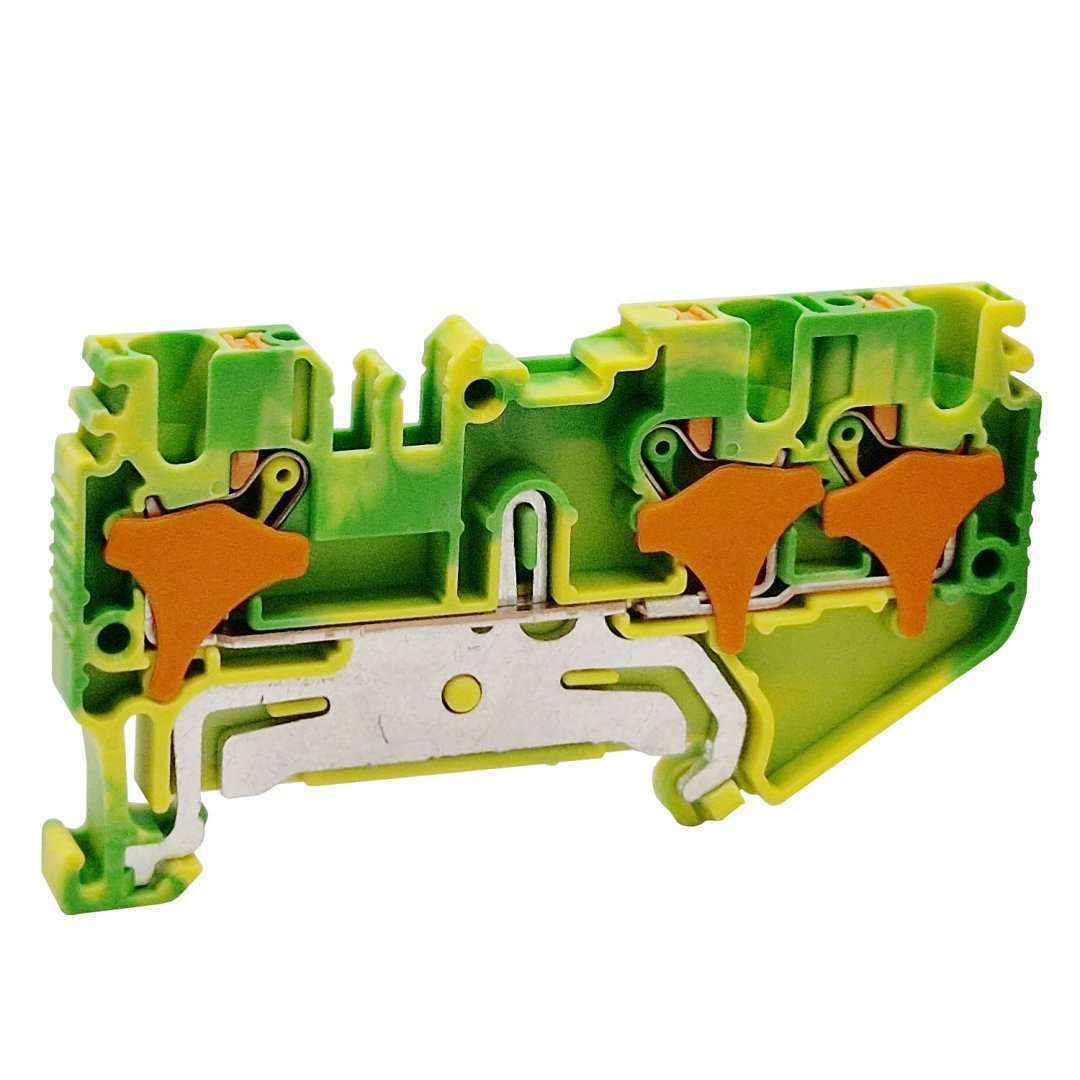

Terminal PS PE 2,5 (1+2)
Manufacturer Code: AA102005
without VAT with VAT
Terminal PS PE 2,5 (1+2)
| Rated cross-section | 2,5 mm² |
| Connectivity range | 0,08 ÷ 4 mm² |
| Rated current [A] CE | 24 |
| Rated impulse withstand voltage Uimp [V] | 8000 |
| Assembly method | TH 35 |
| Operating temperature [°C] | -40 ÷ +100 |
| Number of clamping points per level | 3 / 1 |
| End cover plate required | YES |
| Dimensions [mm] (width / height / length) | 5,2 / 37,3 / 65,2 |
| Weight [g] | 11 |
| Packing [pcs] | 50 |
| Solid conductor [mm²] | 0,08 ÷ 4 |
| Finely stranded conductor [mm²] | 0,14 ÷ 2,5 |
| Stripping length [mm] | 8 ÷ 10 |
