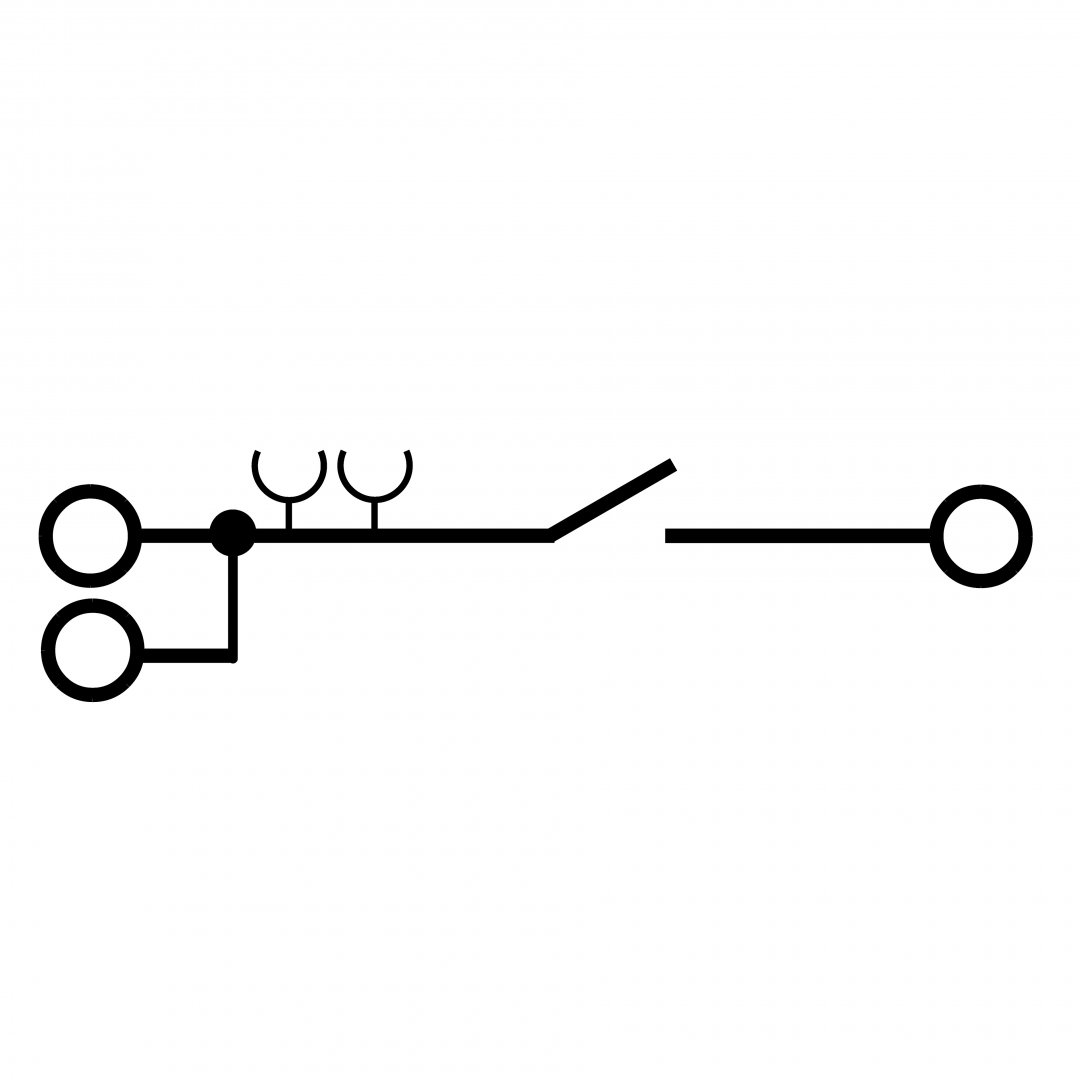

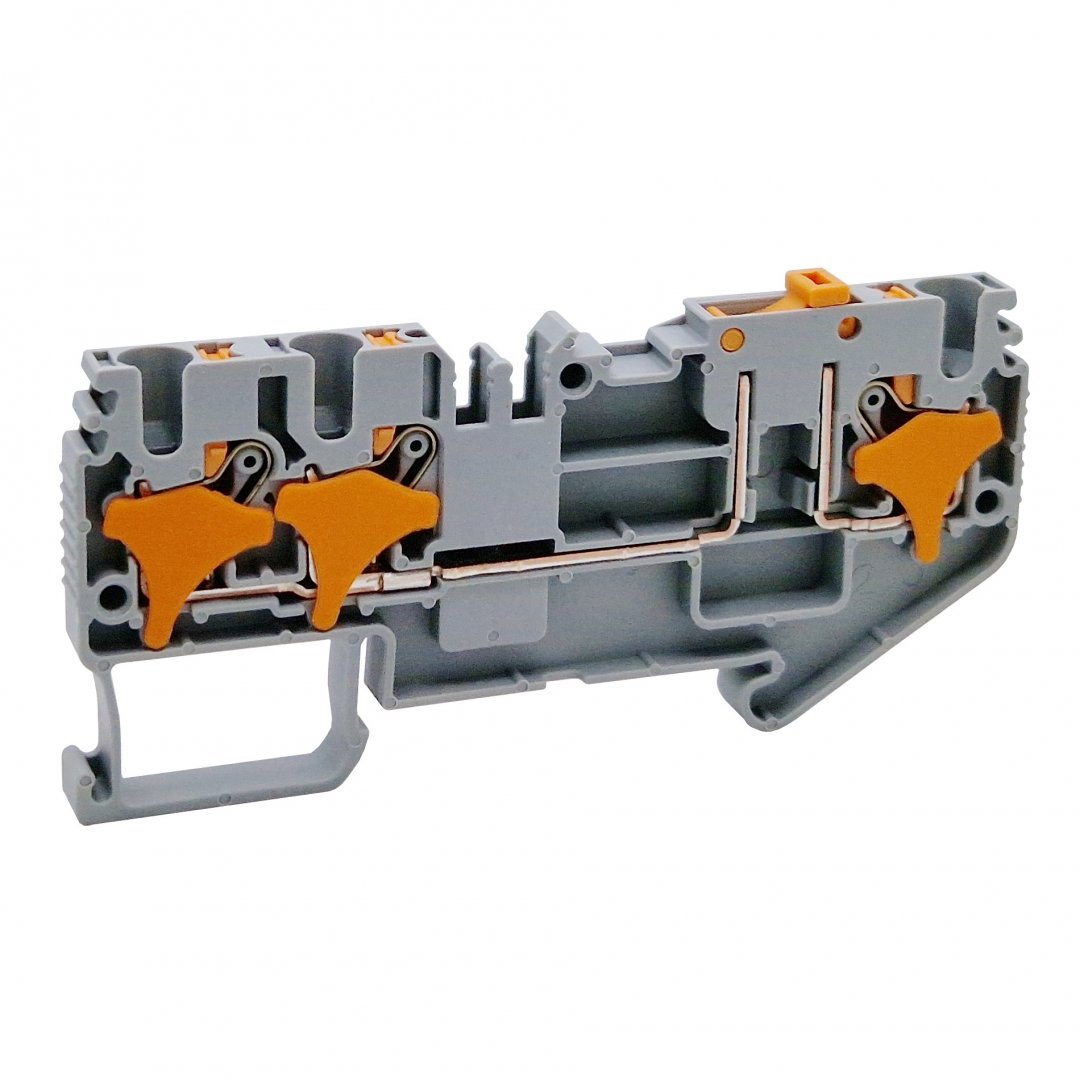

Terminal PS 2,5 D (1+2)

Manufacturer Code: AA101051.21
without VAT with VAT
Terminal PS 2,5 D (1+2)
Rated cross-section 2,5
Connection range 0,08 ÷ 4
Rated current [A] CE 20
Rated voltage Ui [V] CE 500
Rated impulse withstand voltage Uimp [V] 6000
Assembly method TH 35
Pollution degree 3
Operating temperature [°C] -40 ÷ +100
Number of clamping points per level / Number of levels 3 / 1
End cover plate required: YES
Dimensions [mm] (width / height / length) 5,2 / 38,9 / 78,1
Weight [g] 10
Packing [pcs] 50

Conductor cross section

Solid conductor [mm²] 0,08 ÷ 4
Finely stranded conductor with sleeve [mm²] 0,14 ÷ 2,5
Stripping length [mm] 8 ÷ 10
