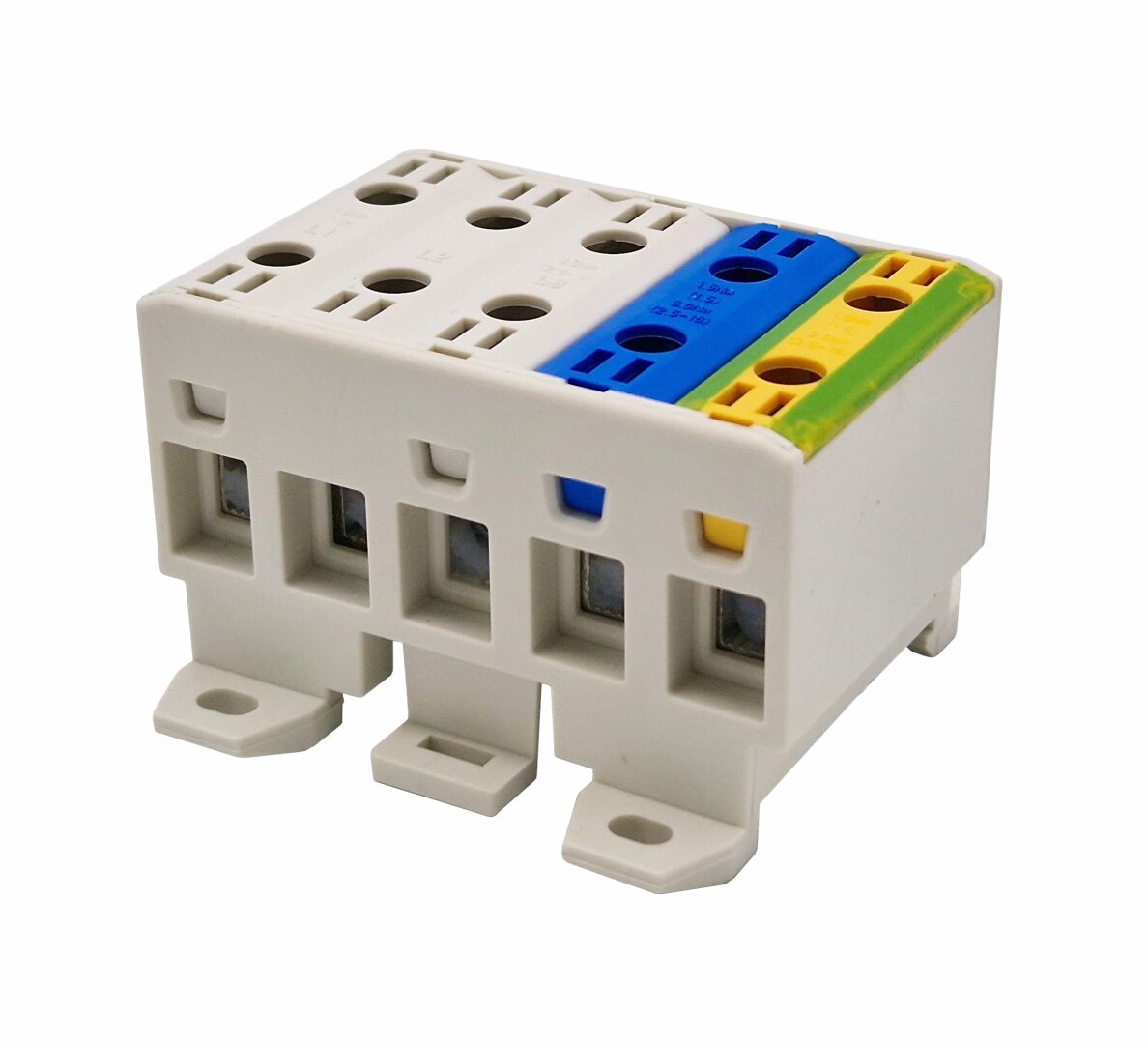

Universal terminal block ETB 16/L1,L2,L3,N,PE
Manufacturer Code: UK5016
8,26 € without VAT 10,00 € with VAT
Universal terminal block ETB 16/L1,L2,L3,N,PE
| Rated cross section [mm²] | 16 |
| Connection range [mm²] | 1,5 ÷ 16 |
| Rated current [A] (Cu/Al) | 85 / 75 |
| Short-time withstand current [A] | 1920 |
| Rated voltage Ui [V] | 1 000 AC / 1 500 DC |
| Rated impulse withstand voltage U (Imp) [V] | 8 000 |
| Maximum power loss [W] (at nominal condition, per 1 pole) | 2,720 |
| Tightening torque [Nm] | 1,5 (1,5 mm²) |
| Tightening torque [Nm] | 3 (2,5 ÷ 16 mm²) |
| Tool | Inbus number 4 |
| Assembly method | TH 35 |
| IP code | 20 |
| Operating temperature [°C] | max. 80 |
| Number of clamping points per level | 10 |
| Number of levels | 1 |
| Number of poles | 5 |
| End cover plate required | NO |
| Dimensions [mm] (width / height / length) | 63 / 40 / 61,4 |
| Weight [g] | 93 |
| Packing [pcs] | 1 |
| Solid conductor [mm²] | 1,5 ÷ 16 |
| Stranded conductor [mm²] | 1,5 ÷ 16 |
| Finely stranded conductor [mm²] | 1,5 ÷ 16 |
| 2 x Solid conductor [mm²] | 1,5 ÷ 6 |
| 2 x Stranded conductor [mm²] | 1,5 ÷ 6 |
| 2 x Finely stranded conductor [mm²] | 1,5 ÷ 6 |
| 3 x Solid conductor [mm²] | 1,5 ÷ 4 |
| 3 x Stranded conductor [mm²] | 1,5 ÷ 4 |
| Max. cross-section of 1 conductor with sleeve | 10 |
| Max. cross section of 2 conductors with sleeve | 6 |
| Stripped wire length | 15 |
