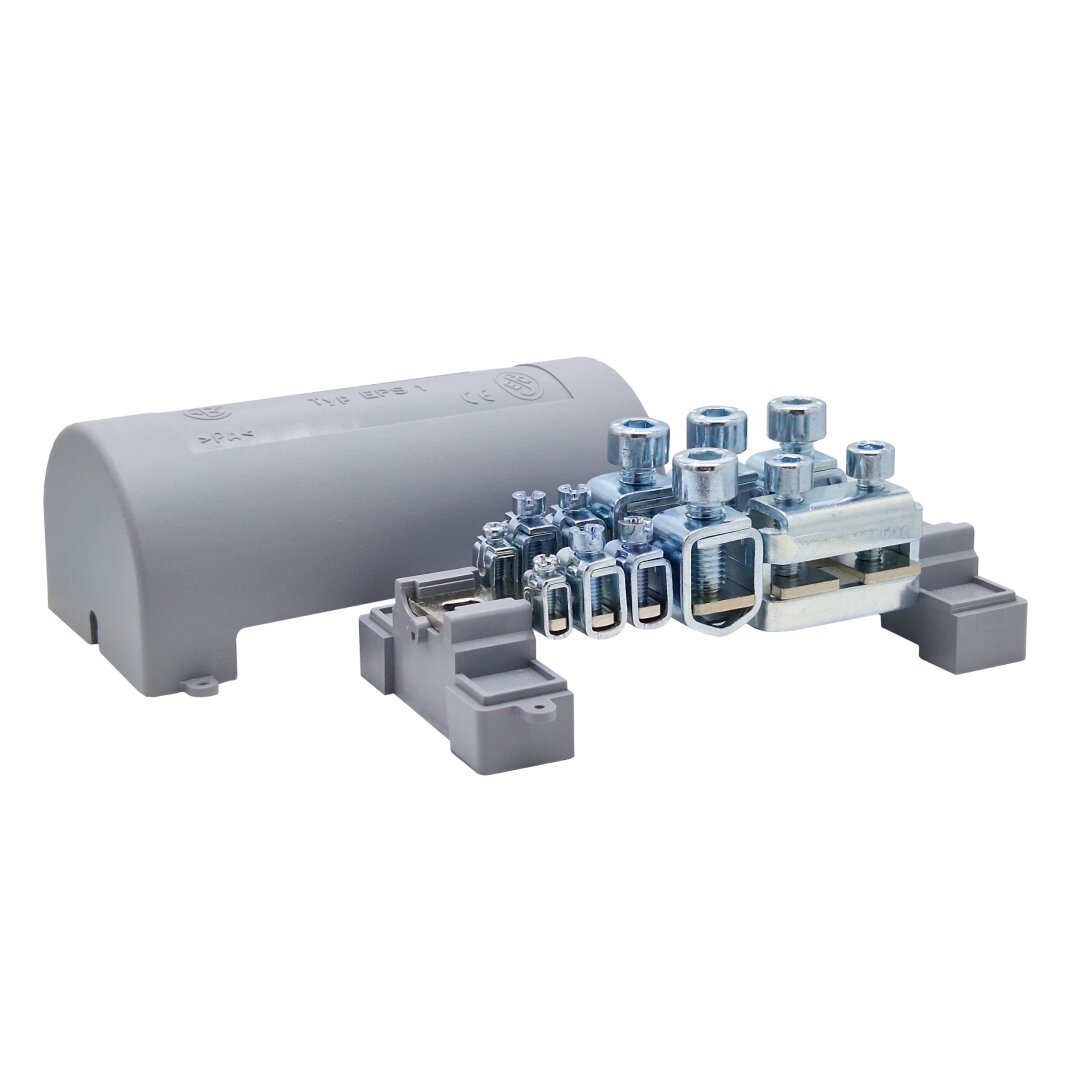

Equipotential terminal EPS 1 with cover
Manufacturer Code: I223407
11,94 € without VAT 14,45 € with VAT
Equipotential terminal EPS 1 with cover
| Type of clamp their number in the terminal block | EPS 6 mm² - 2 x |
| Type of clamp their number in the terminal block | EPS 16 mm² - 4 x |
| Type of clamp their number in the terminal block | EPS 95 mm² - 4 x |
| Type of clamp their number in the terminal block | EPS - PL30 - 1 x |
| Assembly method | plate / box KT |
| Operating temperature [°C] | -25 - +55 |
| Number of clamping points per level | 11 |
| Number of levels | 1 |
| Testing | EN 60974-7-1 |
| Dimensions [mm] (width / height / length) | 60 / 60,5 / 125 |
| Weight [g] | 330 |
| Packing [pcs] | 1 |
| Colour design plastic parts | grey |
