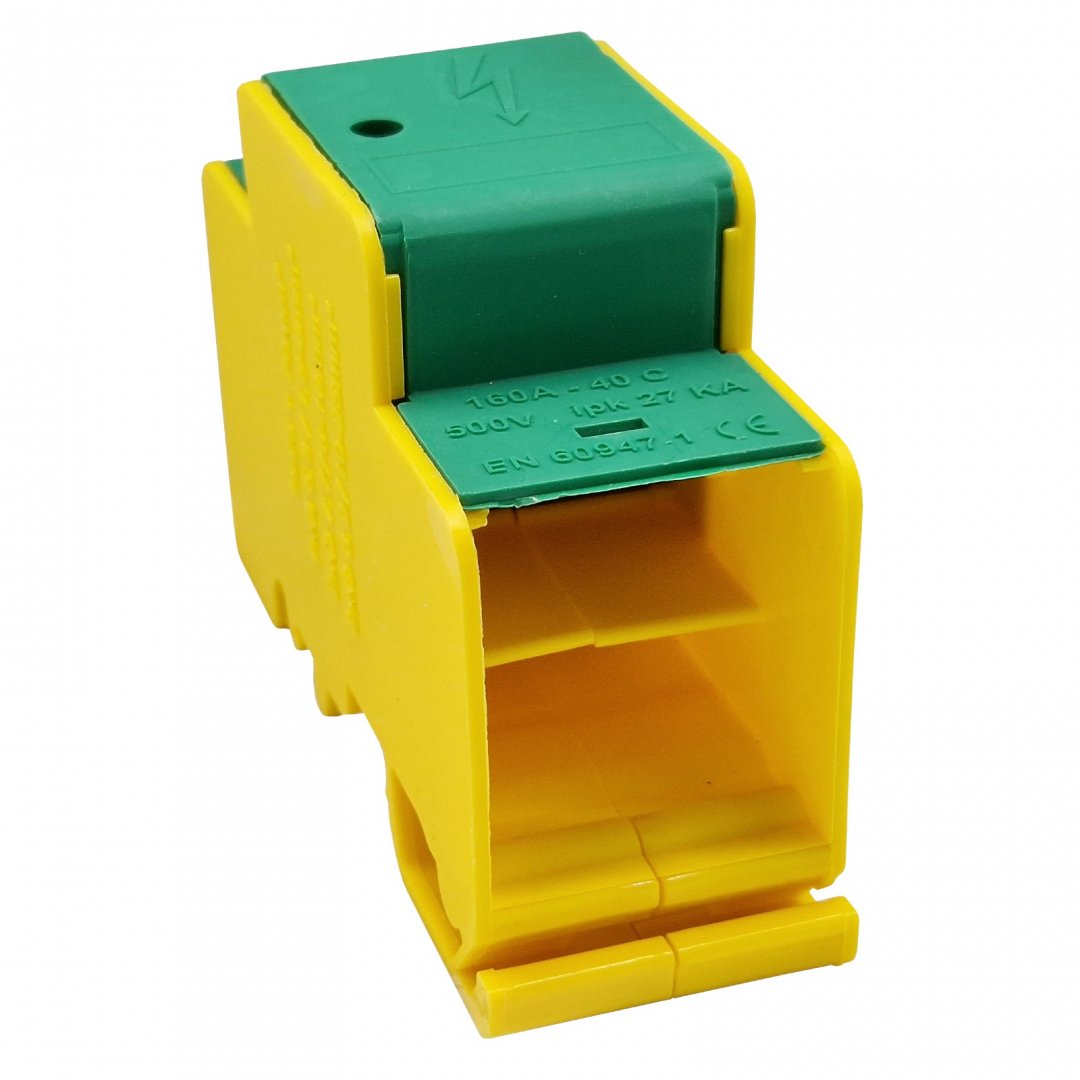

Distribution block 70/7x6+2x25+2x16 green yellow

Manufacturer Code: UB7035.24
20,80 € without VAT 25,17 € with VAT
Distribution block 70/7x6+2x25+2x16 green yellow
Rated cross-section [mm²] 70
Rated current [A] 160
Rated voltage Ui [V] 500
Tightening torque [Nm] 1 (6 mm²)
Tightening torque [Nm] 1,2 (16 mm²)
Tightening torque [Nm] 12 (25 mm²)
Tightening torque [Nm] 18 (35 - 70 mm²)
Tool Inbus / PH 2
Assembly method TH 35
IP code 20
Operating temperature [°C] -25 - +100
Number of clamping points per level 12
Number of levels 1
End cover plate required NO
Testing IEC 60947-7-1
Dimensions [mm] (width / height / length) 35 / 68 / 97
Weight [g] 187
Packing [pcs] 1

Conductor cross section

Conductor cross-section – Input [mm²] 1 x 25 - 70
Conductor cross-section – Output [mm²] 2 x 10 - 25
Conductor cross-section – Output [mm²] 2 x 6 - 16
Conductor cross-section – Output [mm²] 7 x 1,5 - 6
