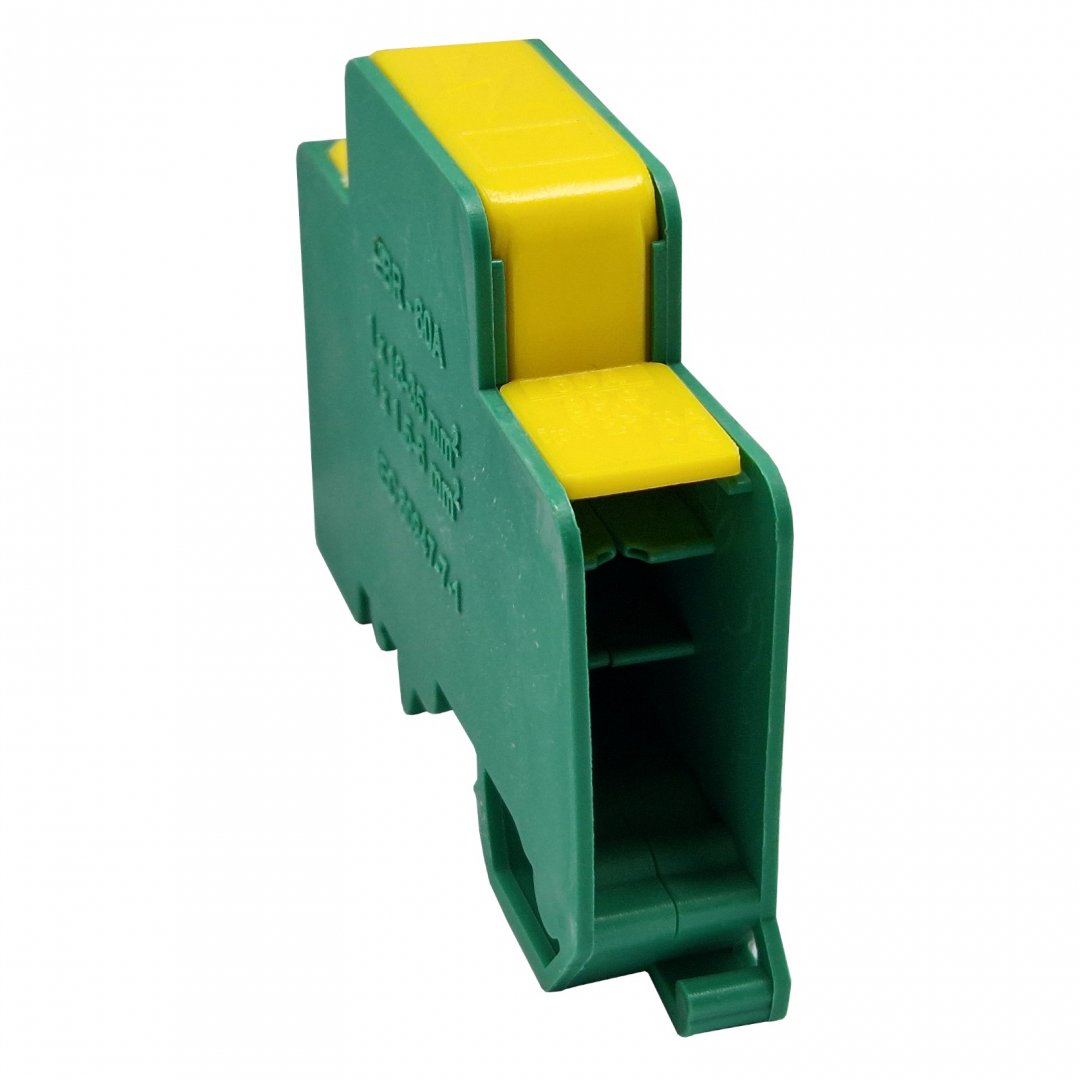

Distribution block DTB 35/3x16 green yellow

Manufacturer Code: UB3516.24
10,27 € without VAT 12,43 € with VAT
Distribution block DTB 35/3x16 green yellow
Rated cross-section [mm²] 35
Rated current [A] 60
Rated voltage Ui [V] 500
Tightening torque [Nm] 1,2 (16 mm²)
Tightening torque [Nm] 2,5 (35 mm²)
Tool PH 2 with flat slot
Assembly method TH 35
IP code 20
Operating temperature [°C] -25 - +100
Number of clamping points per level 4
Number of levels 1
End cover plate required NO
Testing IEC 60947-7-1
Dimensions [mm] (width / height / length) 17,5 / 68 / 97
Weight [g] 106
Packing [pcs] 1

Conductor cross section

Conductor cross-section – Input [mm²] 1 x 6 - 35
Conductor cross-section – Output [mm²] 3 x 6 - 16
