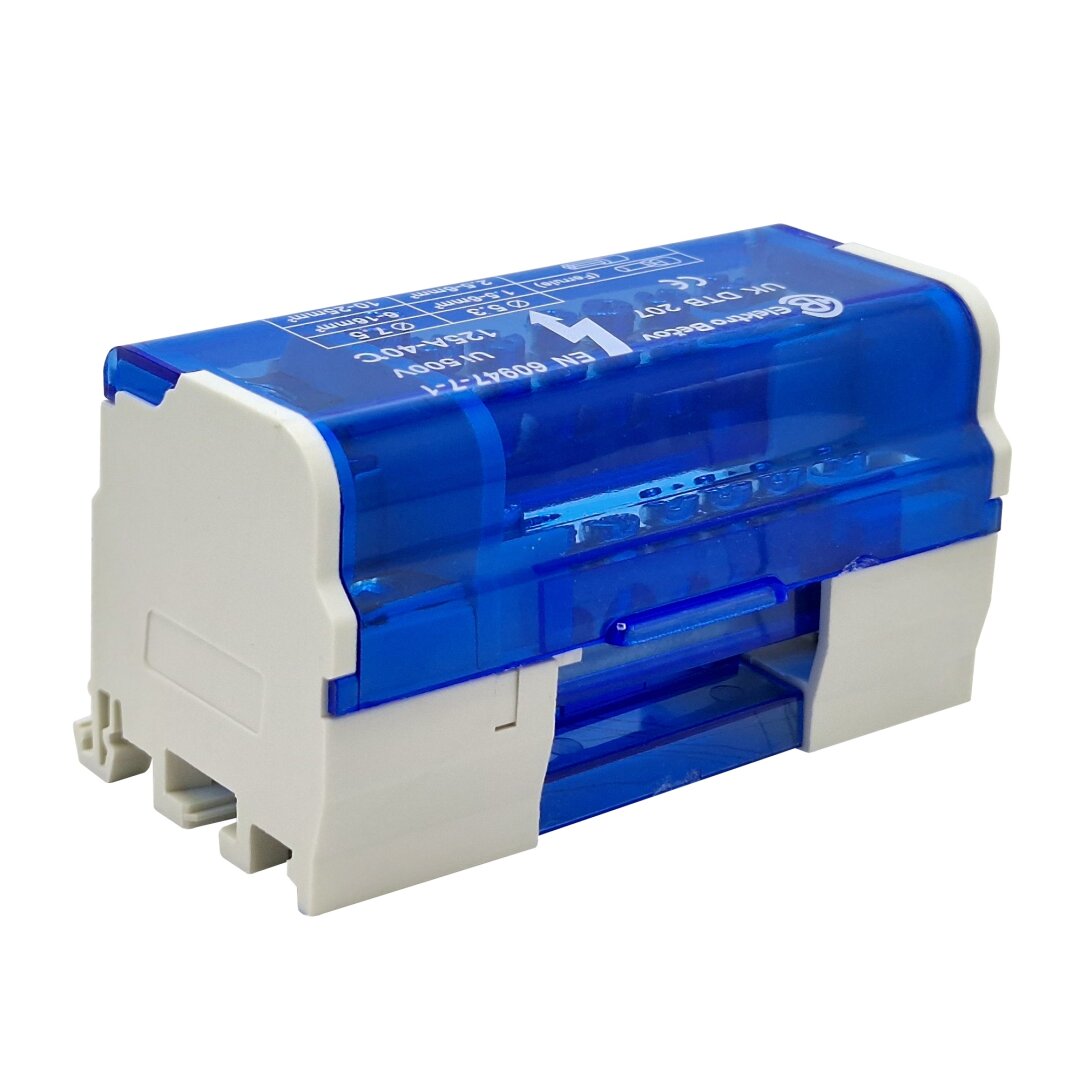

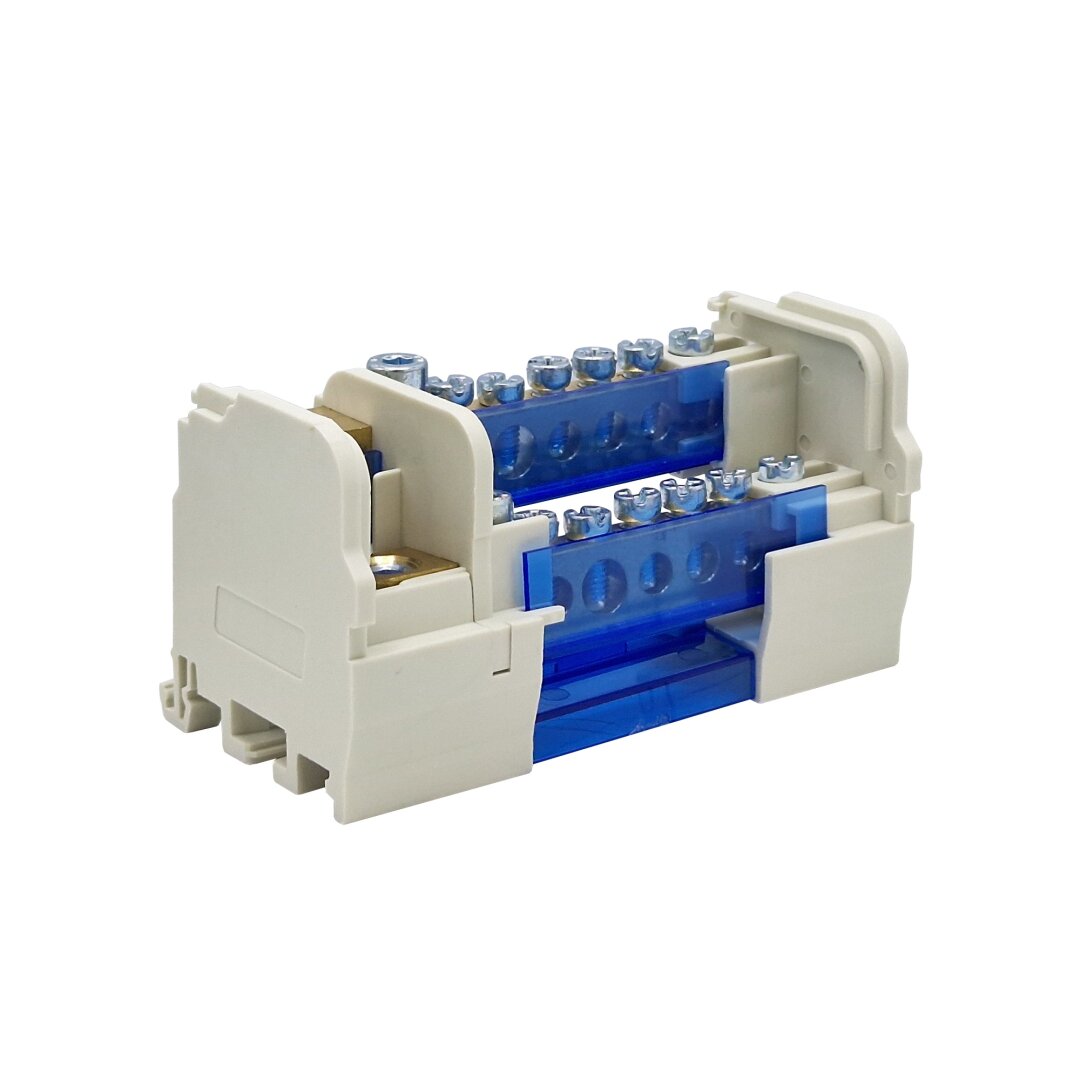

Distribution bridge UK DTB 207
Manufacturer Code: UM207
6,39 € without VAT 7,73 € with VAT
Distribution bridge UK DTB 207
| Rated current [A] | 125 |
| Short-time withstand current [A] | 4 200 |
| Rated voltage Ui [V] | 500 |
| Tightening torque [Nm] | 2,5 (6 ÷ 35 mm²) |
| Tightening torque [Nm] | 2 (1,5 ÷ 16 mm²) |
| Tool | Inbus number 4 / PH 2 |
| Assembly method | TH 35 / on the plate |
| Number of clamping points per level | 7 (for 1 pole) |
| Number of levels | 2 |
| Number of poles | 2 |
| End cover plate required | NO |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 94 / 50 / 44 |
| Weight [g] | 170 |
| Packing [pcs] | 1 |
| Note | The distribution blocks are intended for copper conductors only. Flexible conductors must be provided with a ferrule. |

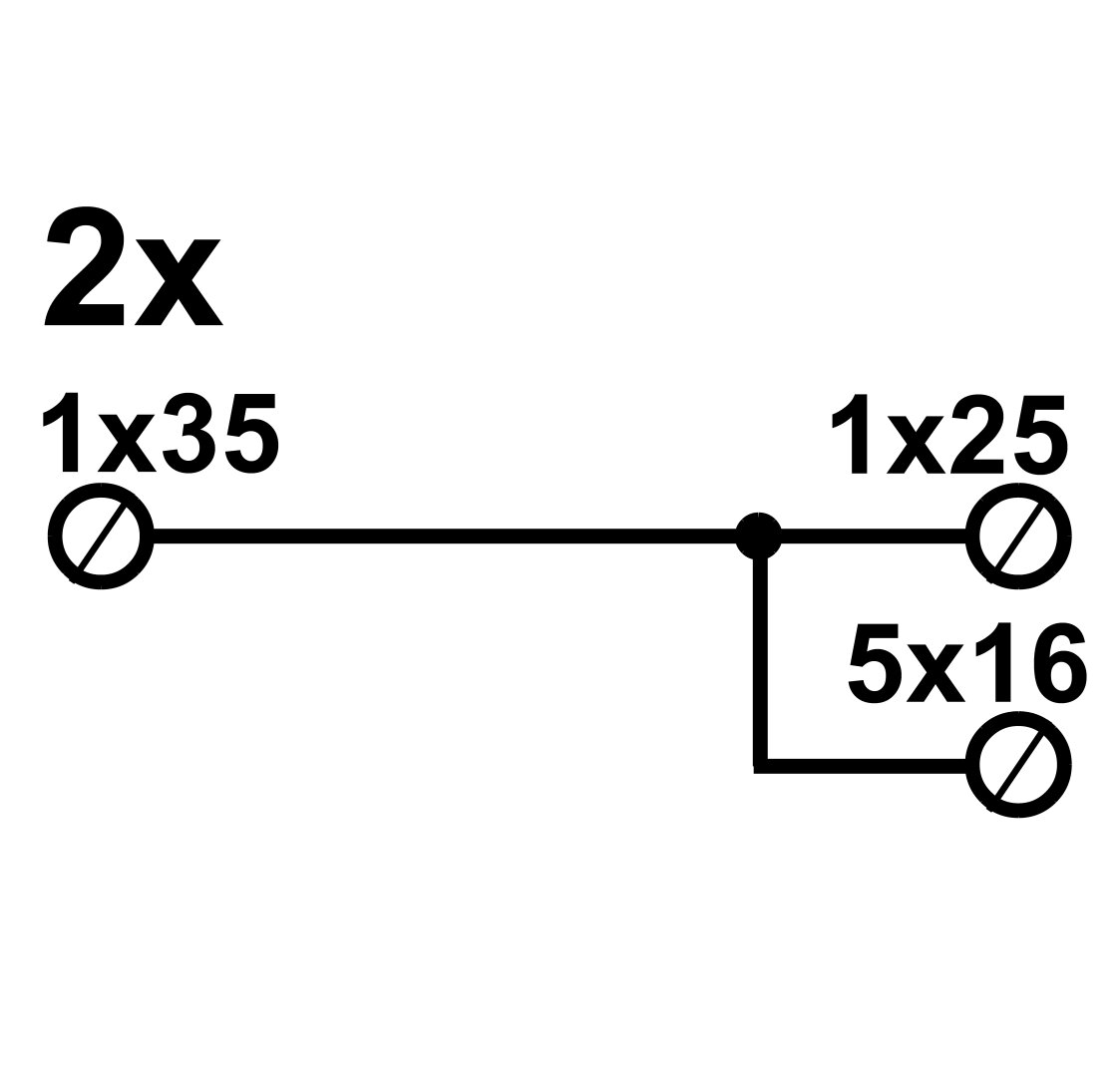

| Conductor cross-section – Input [mm²] | 1 x 6 ÷ 35 (flexible conductor with ferrule max.25) |
| Conductor cross-section – Output [mm²] | 1 x 4 ÷ 25 (flexible conductor with ferrule max.16) |
| Conductor cross-section – Output [mm²] | 5 x 1,5 ÷ 16 (flexible conductor with ferrule max.10) |
