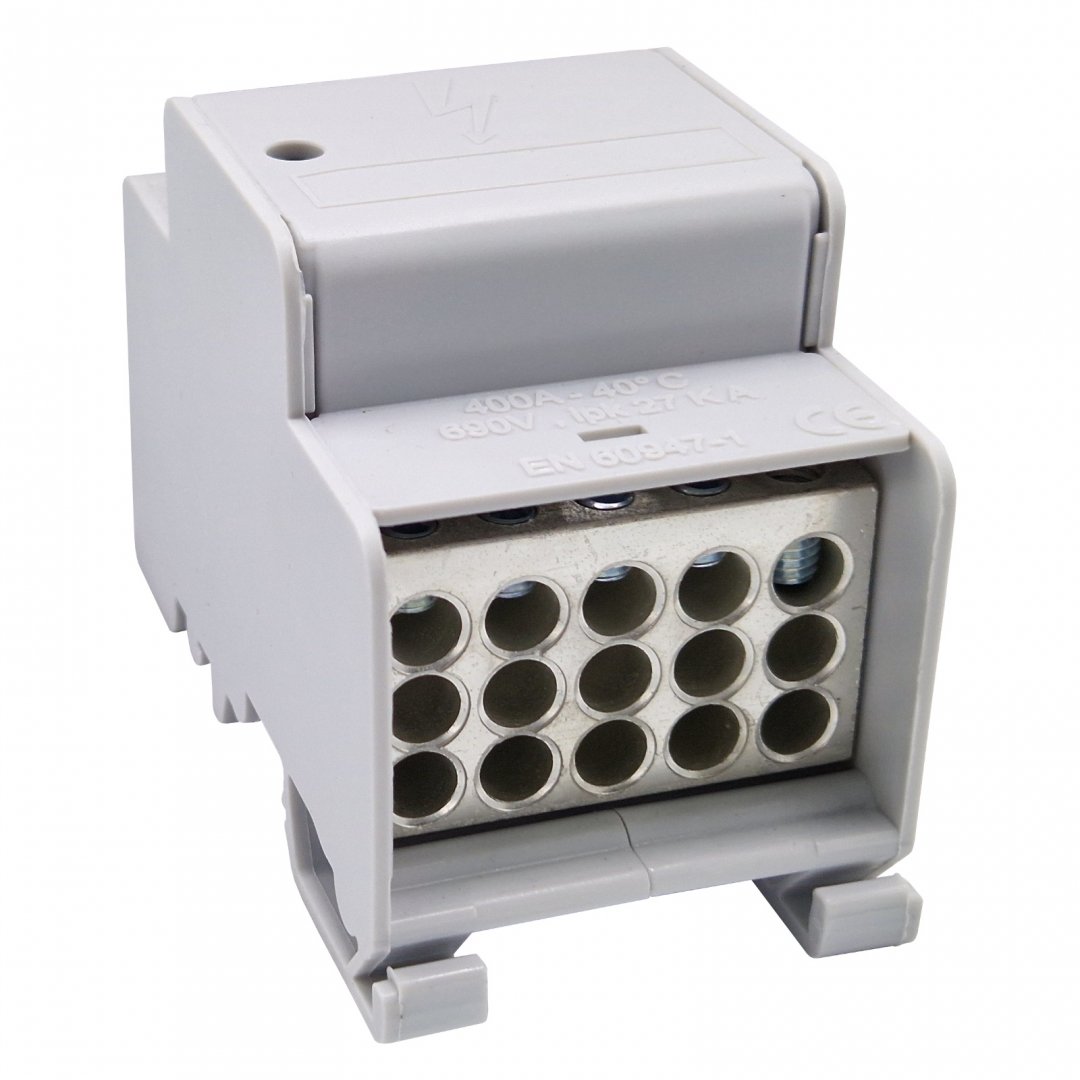

Distribution block DTB 2x120/15x16 grey

Manufacturer Code: UB2120CK21
39,58 € without VAT 47,90 € with VAT
Distribution block DTB 2x120/15x16 grey
Rated cross-section [mm²] 120
Rated current [A] 400
Rated voltage Ui [V] 690
Rated impulse withstand voltage Uimp [kV] 6
Tightening torque [Nm] 2,5 (2,5 mm²)
Tightening torque [Nm] 5 (4 - 6 mm²)
Tightening torque [Nm] 7 (10 - 16 mm²)
Tightening torque [Nm] 12 (25 - 35 mm²)
Tightening torque [Nm] 18 (50 - 70 mm²)
Tightening torque [Nm] 22 (95 - 120 mm²)
Tool Inbus
Assembly method TH 35
IP code 20
Operating temperature [°C] -25 - +100
Number of clamping points per level 17
Number of levels 1
End cover plate required NO
Testing IEC 60947-7-1
Dimensions [mm] (width / height / length) 52,5 / 67 / 97
Weight [g] 247
Packing [pcs] 1

Conductor cross section

Conductor cross-section – Input [mm²] 2 x 35 - 120
Conductor cross-section – Output [mm²] 15 x 2,5 - 16
